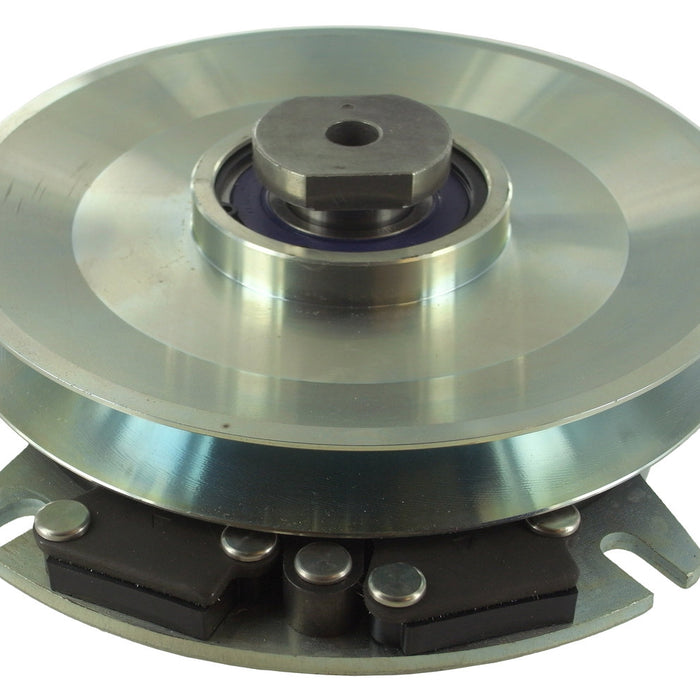

PTO Clutch Replaces Warner 5218-99 5218-209

Description

Applications:

EXMARK MOWERS

Lazer Z AS EFI- Serial # 510,000 to 789,999
Lazer Z EFI- Serial # 370,000 to 439,999
Lazer Air Cooled EFI- Serial # 720,000 and Up
Lazer Z AC EFI- Serial # 440,000 and Up (Requires Wire Harness Splicing)
Lazer Z AS- Serial # 510,000 to 719,999

TORO MOWERS

Z Master Z500- Serial # 280000001 to 311999999
Z Master Z557- Serial # 240000001 to 260999999
Z Master Z560- Serial # 270000001 to 270999999
Z Master Z588E- Serial # 240000001 to 260999999

Specifications:

CRANKSHAFT SIZE IN INCHES: 1.125
PULLEY OD IN INCHES: 6.375
ROTATION: CW
FOOT POUNDS: 200

Replaces these part numbers:

Exmark: 103-3132, 103-3246, 103-4000, 103-4057, 103-5835, 103-6579, 109-7665, 109-7673, 116-1611

Toro: 103-3132, 103-3246, 103-4000, 103-4057, 103-5835, 103-6579, 109-7665, 109-7673, 116-1611

Warner: 5218-168, 5218-202, 5218-209, 5218-99, 548-65

Xtreme: X0461
