Description

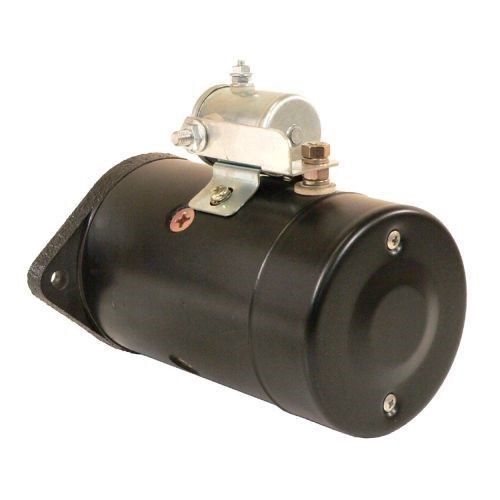

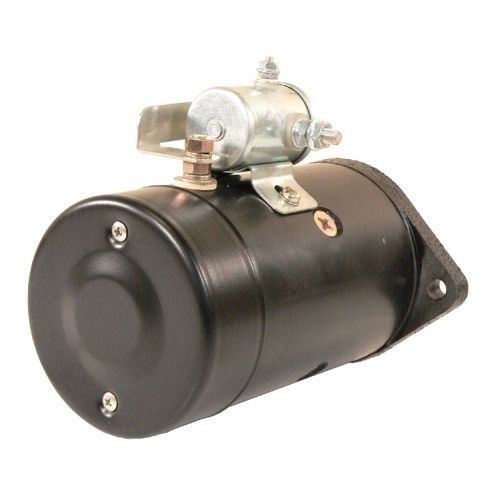

\n12 Volt PUMP MOTOR REPLACES PRESTOLITE MCL6508T MCL6225
\n
\n
Applications:
\n
\nHALE FIRE PUMP
\nWISCONSIN ENGINEERING
\nPOWER WHEELS EQUIPMENT
\nPUREX
\nWATEROUS
\nAMERICAN GODIVA
\n
\n
Specifications:
\n
\nUnit Type: Pump Motor
\nVoltage: 12
\nRotation: CW
\nField Housing O.D.: 4.50 in.
\nOverall Length: 8.929 in.
\nShaft Outside Diameter: 15.8 mm
\nShaft Style: Keyway
\nTerminal 1 Size: 5/16 - 18
\nHousing Finish: Field case is black.
\nWeight: 19 lbs.
\n
\nNotes: Double ball bearing. Comes with Solenoid and connecting strap. Also available with plastic "Prestolite" style solenoid.
\n
\n
Replaces these part numbers:
\n
\nARROWHEAD: LPL0028
\nHALE: 200-0040-00
\nLESTER: 10718, 5196, 6005
\nPRESTOLITE: 46-2155, 46-2244, 46-235, 46-2604, 46-4200, 46-555, 46-557, MAY4146, MAY4301, MAY4301S, MCL6225, MCL6225A, MCL6228, MCL6229, MCL6508, MCL6508T, MUE6207, MUE6216, MUE6307, MUE6316
\nREFERENCE NUMBER: M-2000, V-1157, V-2068, VHA-445D
\nWESTERN MOTORS: W-6216, W-6598, W-6599
