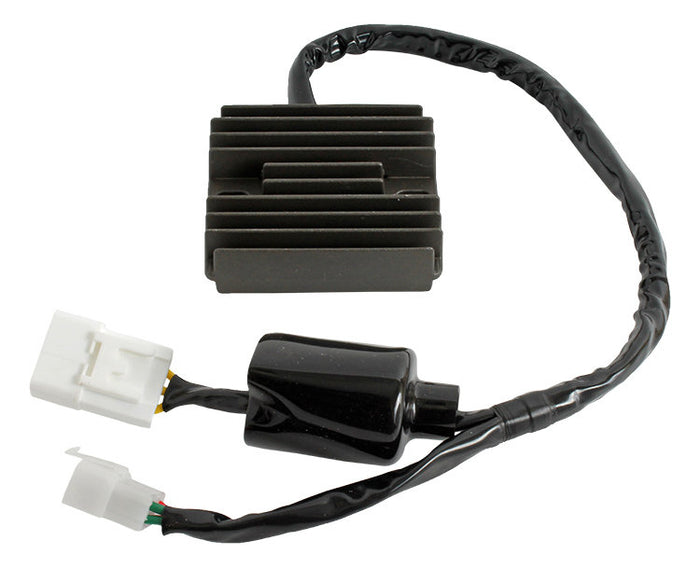

Regulator For 2005-2009 Honda VTX1300R with 1312cc Engines

Description

Applications:

Honda VTX1300S 1312cc Engines 2003
Honda VTX1300S 1312cc Engines 2004
Honda VTX1300S 1312cc Engines 2005
Honda VTX1300S 1312cc Engines 2006
Honda VTX1300S 1312cc Engines 2007
Honda VTX1300S 1312cc Engines 2008
Honda VTX1300S 1312cc Engines 2009

Honda VTX1300C 1312cc Engines 2004
Honda VTX1300C 1312cc Engines 2005
Honda VTX1300C 1312cc Engines 2006
Honda VTX1300C 1312cc Engines 2007
Honda VTX1300C 1312cc Engines 2008
Honda VTX1300C 1312cc Engines 2009

Honda VTX1300R 1312cc Engines 2005
Honda VTX1300R 1312cc Engines 2006
Honda VTX1300R 1312cc Engines 2007
Honda VTX1300R 1312cc Engines 2008
Honda VTX1300R 1312cc Engines 2009

Specifications:

Type: Regulator/Rectifier
Voltage: 12

Plug #1 - Red and Green Opposite From Other Similar Rectifiers
110mm L x 80mm W x 28.6mm T
Plug #1- (2) Red Wires (Positive) (2)Greem Wires (Ground)
Plug #2- (3) Yellow Wires (Charging Coil)
Boot Over Plug #2
Wires (Include Plugs) Both 22 Inches OAL

Replaces these part numbers:

Honda: 31600-MEA-670, 31600-MEA-741
Shindengen: SH579DB, SH579DA
