Voltage Regulator For GPi 250i Racing 2007 2008 2009 250cc Engines

Description

Applications:

DERBI Rambla 125 2011 125cc
DERBI Rambla 125 2012 125cc

DERBI Rambla 250i 2010 250cc

DERBI Rambla 300i 2011 300cc
DERBI Rambla 300i 2012 300cc

Derbi GPI 250I Racing 2007 250cc
Derbi GPI 250I Racing 2008 250cc
Derbi GPI 250I Racing 2009 250cc

GILERA Nexus 500 2003 500cc
GILERA Nexus 500 2004 500cc
GILERA Nexus 500 2005 500cc
GILERA Nexus 500 2006 500cc
GILERA Nexus 500 2007 500cc
GILERA Nexus 500 2008 500cc
GILERA Nexus 500 2009 500cc
GILERA Nexus 500 2010 500cc
GILERA Nexus 500 2011 500cc
GILERA Nexus 500 2012 500cc
GILERA Nexus 500 2013 500cc

GILERA Nexus 125ie 2008 125cc
GILERA Nexus 125ie 2009 125cc
GILERA Nexus 125ie 2010 125cc
GILERA Nexus 125ie 2011 125cc
GILERA Nexus 125ie 2012 125cc
GILERA Nexus 125ie 2013 125cc

GILERA Nexus 250ie 2006 125cc
GILERA Nexus 250ie 2007 125cc
GILERA Nexus 250ie 2008 125cc

GILERA Nexus 300ie 2008 300cc
GILERA Nexus 300ie 2009 300cc
GILERA Nexus 300ie 2010 300cc
GILERA Nexus 300ie 2011 300cc
GILERA Nexus 300ie 2012 300cc

GILERA Nexus 500SP 2006 500cc
GILERA Nexus 500SP 2007 500cc

GILERA Fuoco 500 2007 500cc
GILERA Fuoco 500 2008 500cc
GILERA Fuoco 500 2009 500cc
GILERA Fuoco 500 2010 500cc
GILERA Fuoco 500 2011 500cc
GILERA Fuoco 500 2012 500cc
GILERA Fuoco 500 2013 500cc

Specifications:

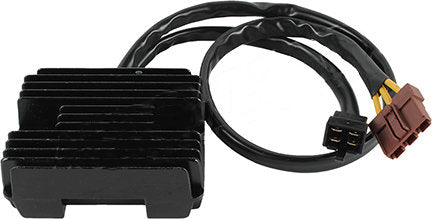

Type: RECTIFIER / REGULATOR
Voltage: 12

111mm L x 85mm W x 39mm T
(3) Yellow Wires In Harness-36" Long
(2) Red (2) Green Wires in Harness-10 Inches Long

Replaces these part numbers:

APRILIA: 584533, 58086R, 639110
DUCATI: 34406002, 34406001, 34406003, 344006000
MALAGUTI: 6051900, 02602400
PEUGEOT: 767293, 767688
SHINDENGEN: SH689DB, SH689JB
