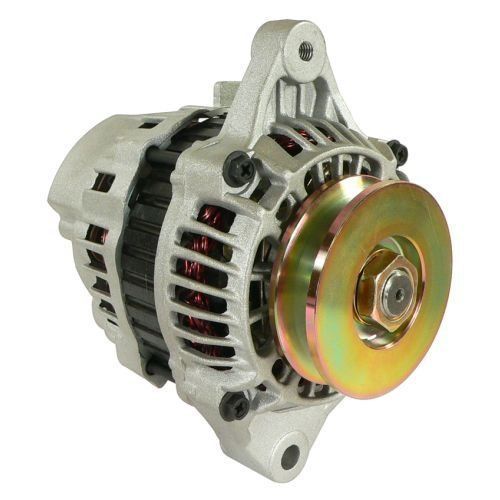

Alternator Kubota M6800SD-F M6800SDC M6800SDT Tractors V3300E Diesel

Description

Applications:

KUBOTA Tractors - Utility M6800SD-F 1998 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SD-F 1999 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SD-F 2000 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SD-F 2001 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SD-F 2002 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SD-F 2003 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SD-F 2004 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SD-F 2005 Kubota V3300E 68HP Dsl

KUBOTA Tractors - Utility M6800SDC 2000 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDC 2001 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDC 2002 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDC 2003 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDC 2004 Kubota V3300E 68HP Dsl

KUBOTA Tractors - Utility M6800SDT 1998 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDT 1999 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDT 2000 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDT 2001 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDT 2002 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDT 2003 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDT 2004 Kubota V3300E 68HP Dsl
KUBOTA Tractors - Utility M6800SDT 2005 Kubota V3300E 68HP Dsl

Specifications:

Description: Alternator
OEM(s): Kubota, Mitsubishi
Voltage: 12
Amps: 45
Rotation: CW
Mtg Ear 1 Hole: M8-1.25 Threaded
Mtg Ear 2 Hole: 12.2mm Unthreaded
Regulator Clock: 11:00
Fan Location: Internal
Regulator Location: Internal
B+ Terminal: M6-1.0
Polarity: Negative
Pulley Grooves: 1
Pulley Type: Solid
Notes:
Plug Code "L, R"
Weight: 9.04 lbs / 4.11 kg

Replaces these part numbers:

KUBOTA: 1C010-64010, 1C010-64011

MITSUBISHI: A7TA1677, A007TA1677
