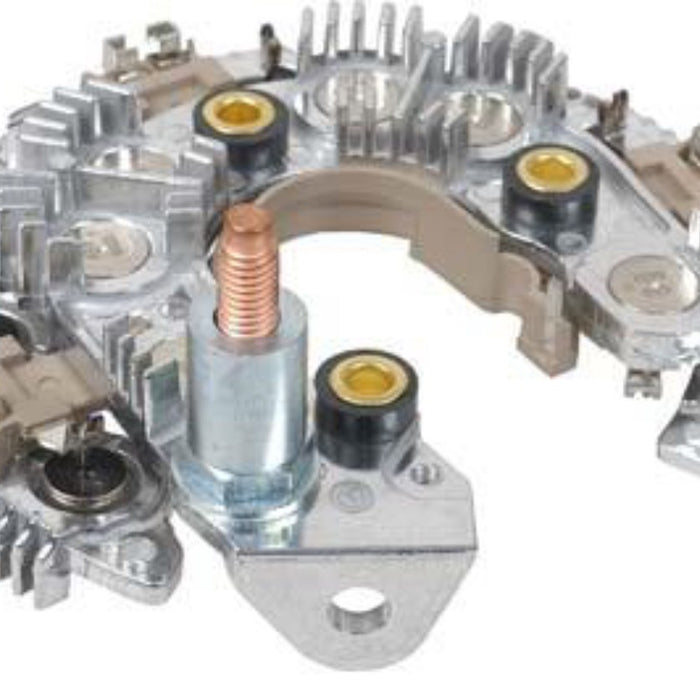

Alternator Rectifier Diode Chrysler 300 5.7L 2014, 6.4L 2012 2013 2014

Description

Applications:

Denso 220 AMP IR/IF Alternators

Chrysler Car 300 V8 5.7L 345cid 2014

Chrysler Car 300 V8 6.4L 6424cc 392cid 2012
Chrysler Car 300 V8 6.4L 6424cc 392cid 2013
Chrysler Car 300 V8 6.4L 6424cc 392cid 2014

Specifications:

Description: Rectifier
OEM(s): Cadillac, Denso
Number of Diodes: 12
Diode Amps: 50
Stud Size: M8-1.25
Rectifier Polarity: Complete Assembly
Unit Polarity: Negative
Mountin Rectifier OD
Mounting Distance: 5.276in / 134mm
Diode Style: Avalanche
Diode Type: Press Fit
Includes Brush Holder?: No
Includes Capacitor?: No
Includes Trio?: No
NOTE: Late-style, cast heat sinks
Weight: 0.87 lbs / 0.4 kg

Replaces these part numbers:

Denso: A628-01707-10K29-775, A628-05233-6K05-777

OEM UNIT NUMBERS

Chrysler: 4801834AB, P04801834AB

Denso: 104210-6000, 104210-6001, 104210-6100, 104210-6103, 104210-6110, 104210-6160, 421000-703, 421000-7030, 421000-7031, TN421000-7031

Ford: 7C3T-10300-EE, 7C3Z-10346-EA

Ford Engineerin 7C3T-EE

GM: 15817893, 15868747, 25815839
