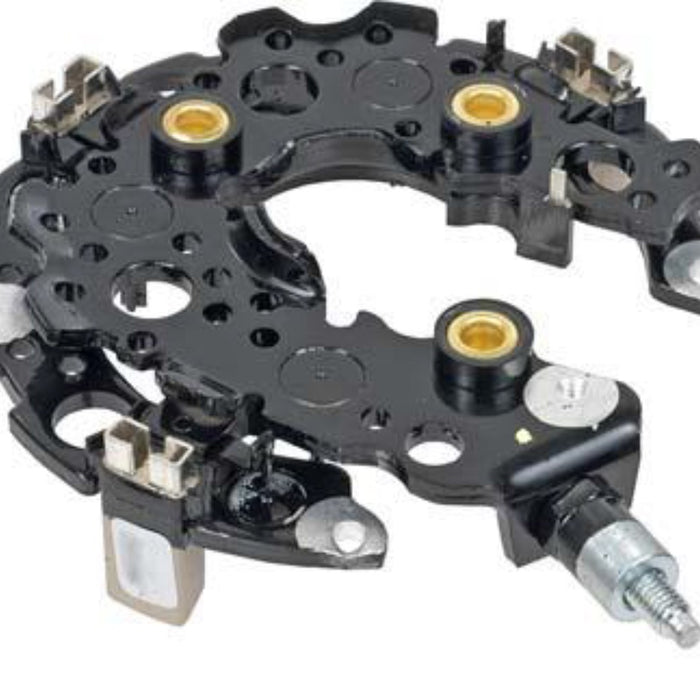

Alternator Rectifier Pontiac Vibe 1.8L 2.4L 2009 2010 9664219-533

Description

Applications:

Denso 100 AMP IR/IF Alternators

Pontiac Car Vibe L4 1.8L 1798cc 2009-2010
Pontiac Car Vibe L4 2.4L 2362cc 2009-2010

Specifications:

Description: Rectifier
OEM(s): Denso, Pontiac, Toyota
Number of Diodes: 6
Diode Amps: 50
Stud Size: M6-1.0
Rectifier Polarity: Complete Assembly
Unit Polarity: Negative
Mountin Rectifier OD
Mounting Distance: 4.606in / 117mm
Diode Style: Avalanche
Diode Type: Press Fit
Includes Brush Holder?: No
Includes Capacitor?: No
Includes Trio?: No
Notes:
-Aluminum Heat Sink
-For Delta Wound Stators

Replaces these part numbers:

Denso: 021580-6610
Toyota: 27357-30070

OEM UNIT NUMBERS

Denso: 104210-1461, 104210-1464, 104210-2270, 104210-2320, 104210-2520, 104210-2630, 104210-284, 104210-2840, 104210-3431, 104210-3620, 104210-3780, 104210-3790, 104210-3880, 104210-3890, 104210-4230, 104210-4470, 104210-4471, 104210-4880, 104210-4881, 104210-4920, 104210-4921, 104210-5100, 104210-5110, 104210-5140, 104210-5330, 104210-5490, 104210-5491, 9664219-362, 9664219-378, 9664219-379, 9664219-388, 9664219-389, 9664219-423, 9664219-492, 9664219-533, DAN1018, DAN1022

GM: 88975507, 88975511
