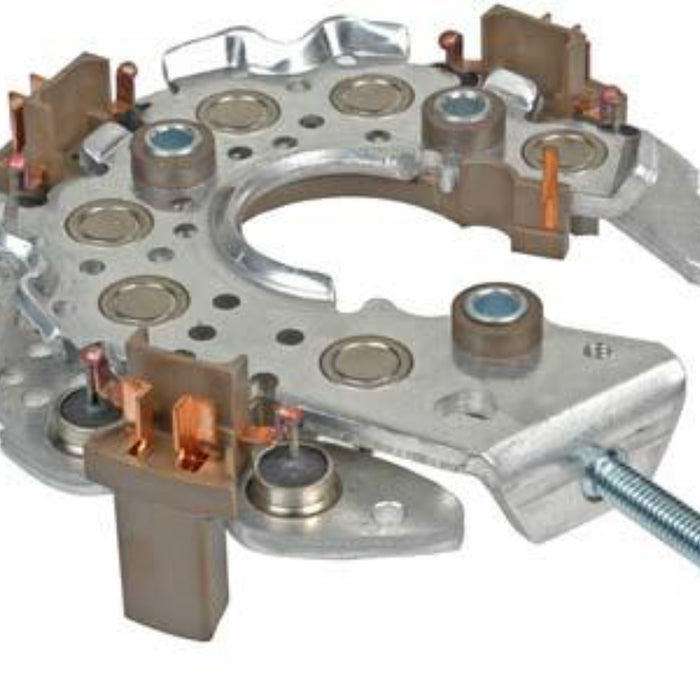

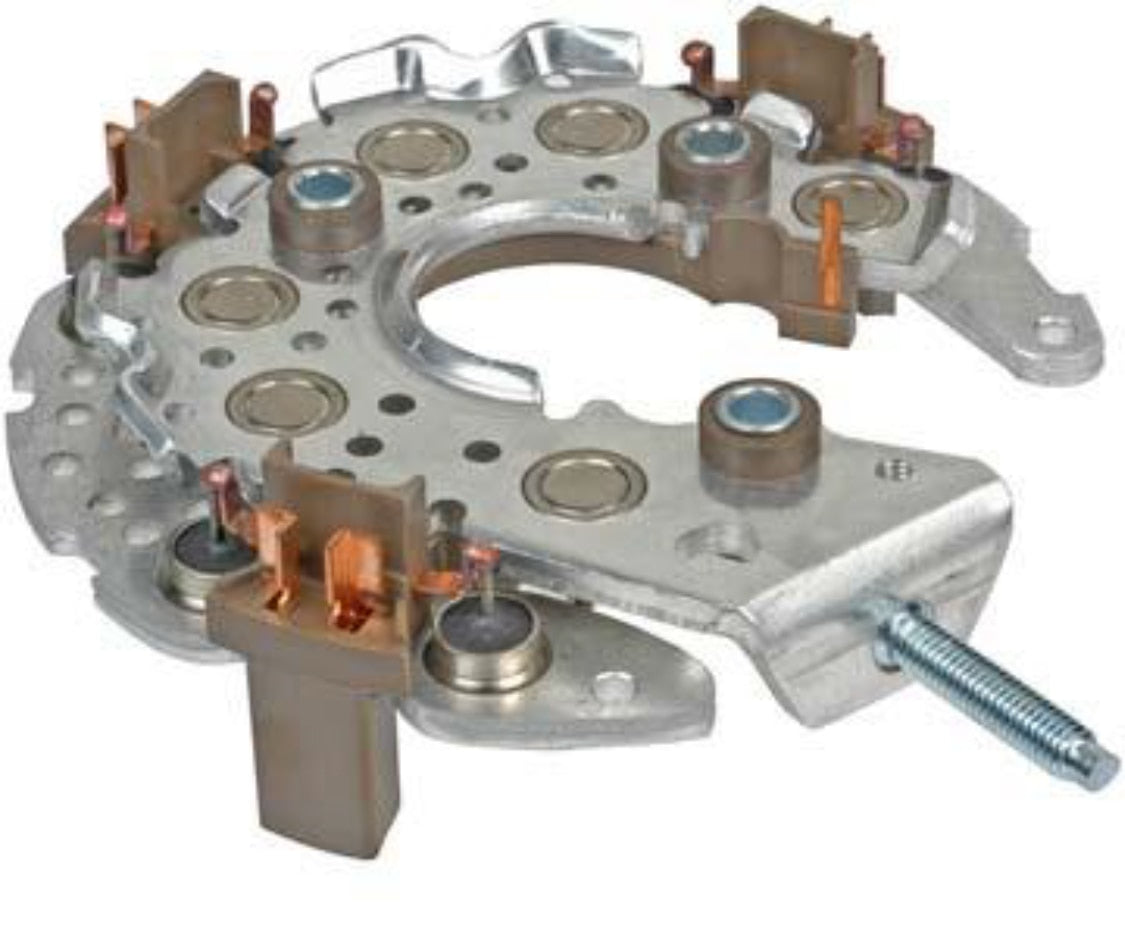

Alternator Rectifier Toyota Sienna Van 3.3L 2004 2005 2006 27060-28300

Description

Applications:

Denso 130A Alternators with Hair Pin Stators

Toyota Van Sienna V6 3.3L 3300cc 202cid 2004
Toyota Van Sienna V6 3.3L 3300cc 202cid 2005
Toyota Van Sienna V6 3.3L 3300cc 202cid 2006

Specifications:

Description: Rectifier
OEM(s): Denso, Toyota
Number of Diodes: 12
Diode Amps: 50
Stud Size: M6-1.0
Rectifier Polarity: Complete Assembly
Unit Polarity: Negative
Mountin Rectifier OD
Mounting Distance: 4.606in / 117mm
Diode Style: Avalanche
Diode Type: Press Fit
Includes Brush Holder?: No
Includes Capacitor?: No
Includes Trio?: No
Weight: 0.56 lbs / 0.26 kg

Replaces these part numbers:

Denso: 021580-6520

OEM UNIT NUMBERS

Denso: 104210-3750, 104210-3751, 104210-4591, 104210-4770, 104210-4771, 104210-4790, 104210-4791, 104211-8092, 9664219-375

Lexus: 27060-0A100, 27060-0A130, 27060-0A130-84, 27060-31212

Marelli: 063377534010

Toyota: 27060-0A100, 27060-0A130, 27060-0A130-84, 27060-0G021, 27060-26030, 27060-28300, 27060-28301, 27060-2830184
