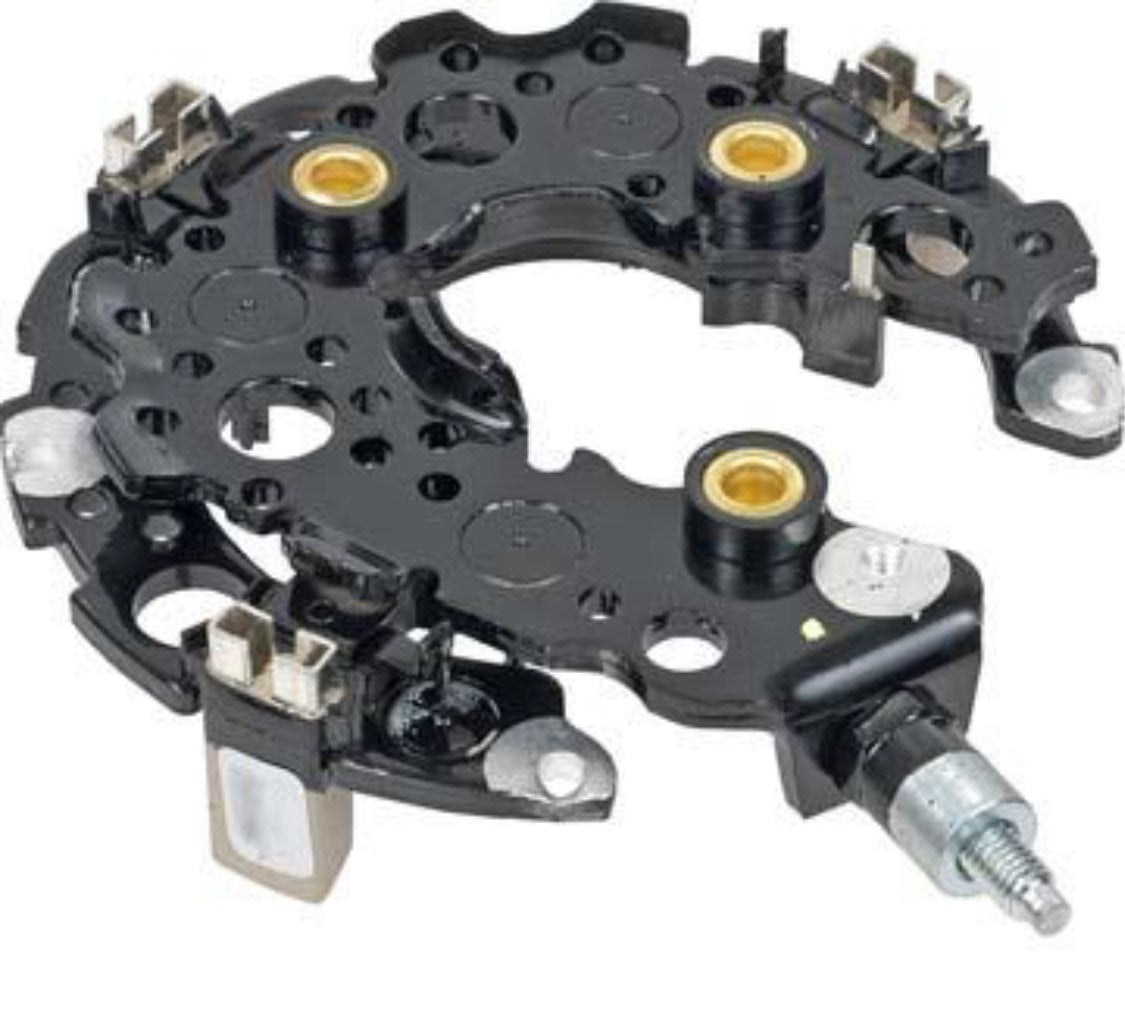

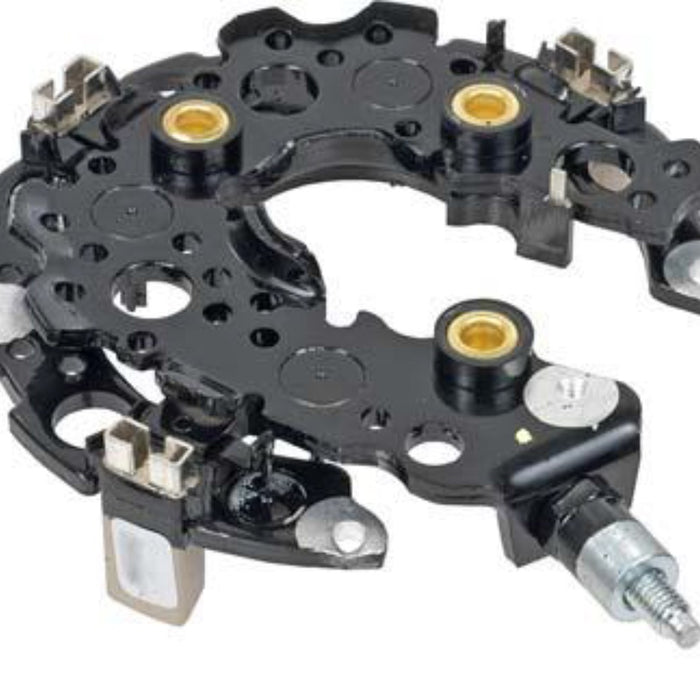

Alternator Rectifier Toyota Solara 2.4L 3.3L 2004 2005 2006 2007 2008

Description

Applications:

Denso 100 AMP IR/IF Alternators

Toyota Car Solara L4 2.4L 2362cc 2004-2008
Toyota Car Solara V6 3.3L 3300cc 2004
Toyota Car Solara V6 3.3L 3300cc 202cid 2005-2008

Specifications:

Description: Rectifier
OEM(s): Denso, Pontiac, Toyota
Number of Diodes: 6
Diode Amps: 50
Stud Size: M6-1.0
Rectifier Polarity: Complete Assembly
Unit Polarity: Negative
Mountin Rectifier OD
Mounting Distance: 4.606in / 117mm
Diode Style: Avalanche
Diode Type: Press Fit
Includes Brush Holder?: No
Includes Capacitor?: No
Includes Trio?: No
Notes:
-Aluminum Heat Sink
-For Delta Wound Stators

Replaces these part numbers:

Denso: 021580-6610
Toyota: 27357-30070

OEM UNIT NUMBERS

Denso: 104210-1461, 104210-1464, 104210-2270, 104210-2320, 104210-2520, 104210-2630, 104210-284, 104210-2840, 104210-3431, 104210-3620, 104210-3780, 104210-3790, 104210-3880, 104210-3890, 104210-4230, 104210-4470, 104210-4471, 104210-4880, 104210-4881, 104210-4920, 104210-4921, 104210-5100, 104210-5110, 104210-5140, 104210-5330, 104210-5490, 104210-5491, 9664219-362, 9664219-378, 9664219-379, 9664219-388, 9664219-389, 9664219-423, 9664219-492, 9664219-533, DAN1018, DAN1022

Toyota: 27060-0A120, 27060-0A120-84, 27060-0F080, 27060-0F080-84, 27060-0H100, 27060-0H100-84, 27060-0H110, 27060-0H111, 27060-0H111-84, 27060-0N040, 27060-0N050, 27060-0P030, 27060-0P030-84, 27060-0P140, 27060-0P141, 27060-0P141-84, 27060-0R011, 27060-0S030, 27060-0T040, 27060-0T041, 27060-0T130, 27060-20270, 27060-20270-84, 27060-27090, 27060-28260, 27060-28260-84, 27060-28270, 27060-28270-84, 27060-31120, 27060-31120-84, 27060-31180, 27060-33100, 27060-36010, 27060-36050
