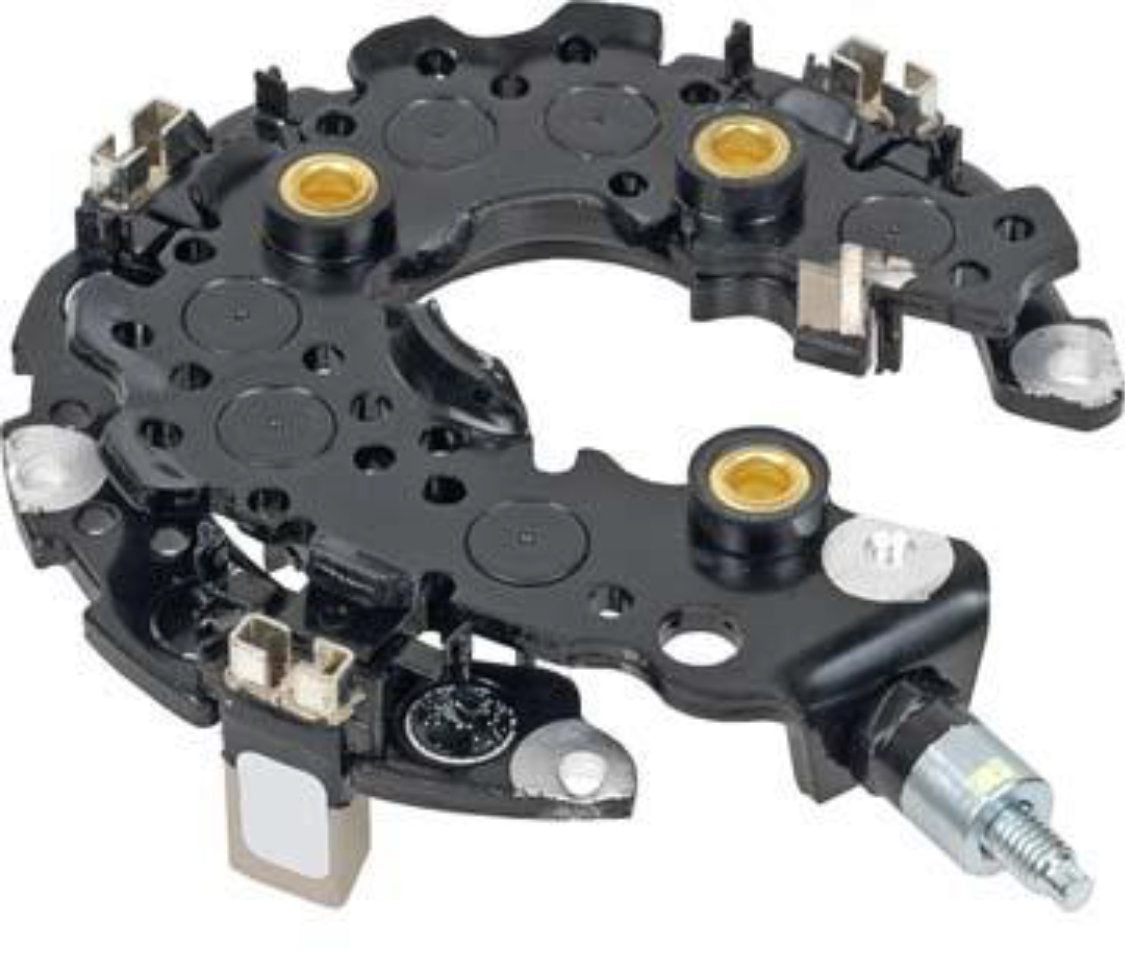

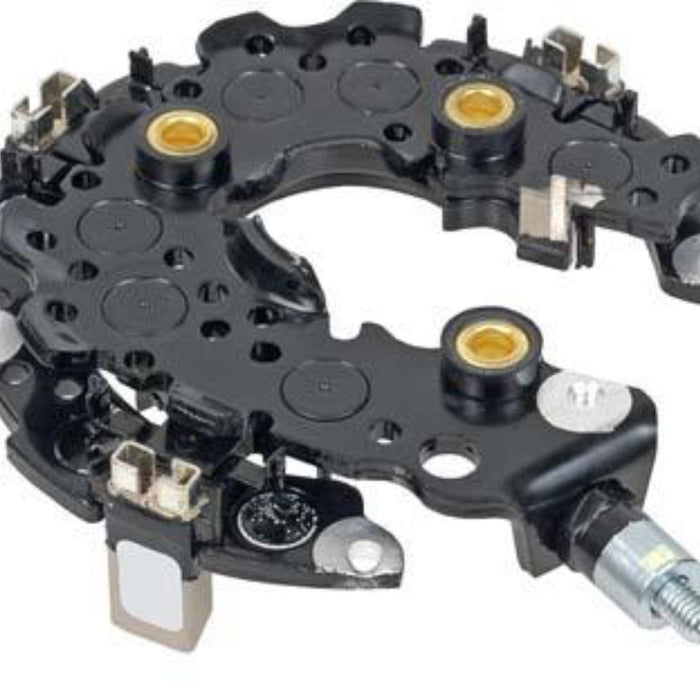

Alternator Rectifier For Toyota Camry 3.3L 2005 2006 021580-7310 27060-20170

Description

Applications:

Denso 130 AMP IR/IF Alternators

Toyota Car Camry V6 3.3L 3300cc 202cid 2005
Toyota Car Camry V6 3.3L 3300cc 202cid 2006

Specifications:

Description: Rectifier
OEM(s): Denso, Toyota
Number of Diodes: 12
Diode Amps: 50
Stud Size: M6-1.0
Rectifier Polarity: Complete Assembly
Unit Polarity: Negative
Mountin Rectifier OD
Mounting Distance: 4.606in / 117mm
Diode Style: Avalanche
Diode Type: Press Fit
Includes Brush Holder?: No
Includes Capacitor?: No
Includes Trio?: No
Weight: 0.46 lbs / 0.21 kg

Replaces these part numbers:

Denso: 021580-7310
Toyota: 27357-20260

OEM UNIT NUMBERS

Denso: 104210-2100, 104210-2101, 104210-2104, 104210-2350, 104210-2351, 104210-2352, 104210-2360, 104210-2362, 104210-2390, 104210-2860, 104210-2863, 104210-2864, 104210-3040, 104210-3041, 104210-3042, 104210-3043, 104210-3140, 104210-3141, 104210-3470, 104210-3471, 104210-3650, 104210-3651, 104210-3652, 104210-3750, 104210-3751, 104210-4030, 104210-4190, 104210-4200, 104210-4201, 104210-4510, 104210-4511, 104210-4521, 104210-4571, 104210-4573, 104210-4870, 104210-4871, 104210-4890, 104210-5080, 9664219-304, 9664219-314, 9664219-365, 9664219-375, 9664219-403, 9664219-451, 9664219-487, TN104210-2352, TN104210-2362

Toyota: 27060-0A100, 27060-0A130, 27060-0A130-84, 27060-0A140, 27060-0A140-84, 27060-0G010, 27060-0G011, 27060-0P020, 27060-0P020-84, 27060-0P150, 27060-0P151, 27060-0P151-84, 27060-0R060, 27060-0S010, 27060-0V020, 27060-0V030, 27060-20170, 27060-20170-84, 27060-20280, 27060-20280-84, 27060-27060, 27060-28130, 27060-28290, 27060-28290-84, 27060-31020, 27060-31021, 27060-31021-84, 27060-31110, 27060-31111, 27060-3111184, 27060-31112, 27060-31190, 27060-38130-84, 27060-50360, 27060-50360-84
