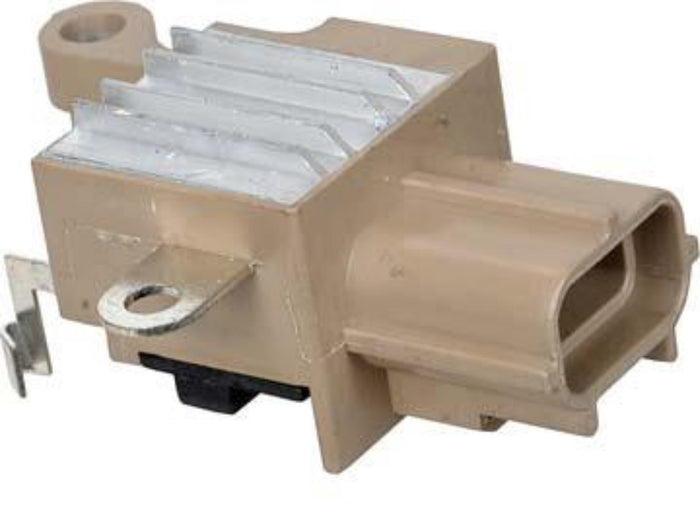

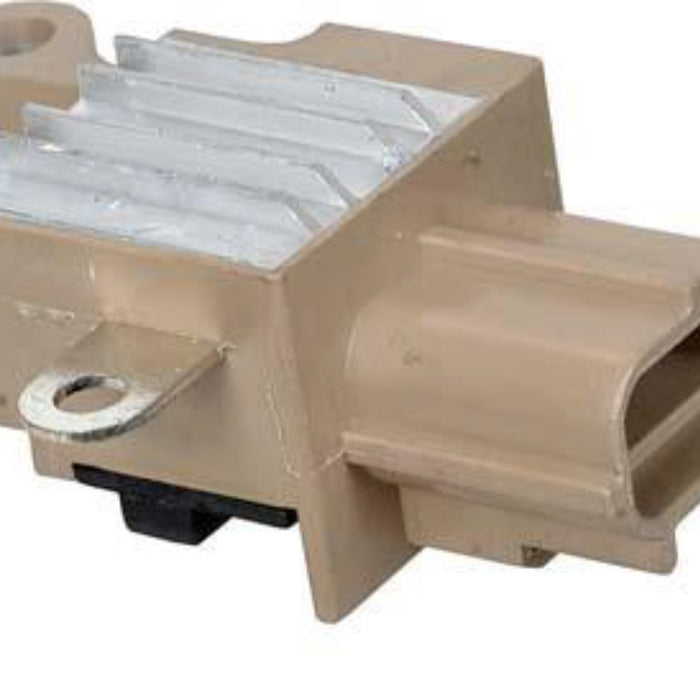

Alternator Regulator Ford F-150 5.4L 2009 2010 3M5T-10300-XC 1477740

Description

Applications:

Denso IR/IF Alternators

Ford Truck F-150 V8 4.6L 281cid 2010
Ford Truck F-150 V8 4.6L 281cid VIN W 2009

Specifications:

Description: Regulator, Electronic
OEM(s): Denso, Ford
Voltage: 12
Set Point: 13.5
Terminal ID: AS, RC, LI
Includes Brush Holder?: No
Adjustable?: No
Circuit Type: B-Circuit
Includes Rectifier?: No
Includes Tolerance Ring?: No
Notes: PCM Controlled Voltage
Weight: 0.11 lbs / 0.05 kg

Replaces these part numbers:

Denso: 126600-3430, 126600-3640

OEM UNIT NUMBERS

Denso: 104210-1110, 104210-2710, 104210-3513, 104210-3520, 104210-3521, 104210-3522, 104210-3523, 104210-3640, 104210-3641, 104210-3760, 104210-3761, 104210-3762, 104210-3950, 104210-3951, 104210-5432, 104210-5630, 104210-5780, 104210-5820, 104210-5821, 104210-5860, 104210-5960, 104210-6100, 104210-6103, TN104210-1110, TN104210-5960

Ford: 1352431, 1406100, 1477740, 1530299, 1748625, 3M5T-10300-VB, 3M5T-10300-VC, 3M5T-10300-XC, 3M5T-10300-XD, 3M5T-10300-YB, 3M5T-10300-YC, 3M5T-10300-YD, 4M5T-10300-UB, 4M5T-10300-UC, 7C3T-10300-EE, 7C3T-10300-FB, 7C3Z-10346-A, 7C3Z-10346-EA, 7L7T-10300-AC, 7L7Z-10346-B, 98AB-10300-GG, 9C3T-10300-AB, 9C3T-10300-AC, 9C3Z-10346-A, 9L3T-10300-BB, 9L3Z-10346-B, 9W7T-10300-AA, 9W7Z-10346-A, AL1T-10300-AA, AL1Z-10346-A, DC2Z-10346-A, RE3M5T-10300-VD

Ford Engineerin 3M5T-VC, 3M5T-YB, 3M5T-YC, 7C3T-EE, 7C3T-FB, 7L7T-AC

Marelli: 063377416010, 63377416, 63377417, 63377526, MAN7417
