Description
\n
Applications:
Land Rover Truck LR3 V8 4.4L 4394cc 2008
Land Rover Truck LR3 V8 4.4L 4394cc 2009
Specifications:
Critical Notes: This Regulator Is For Applications With A B-Circuit Regulator. These Regulators Differ Greatly And A Visual Inspection Should Lead To The Correct Part.

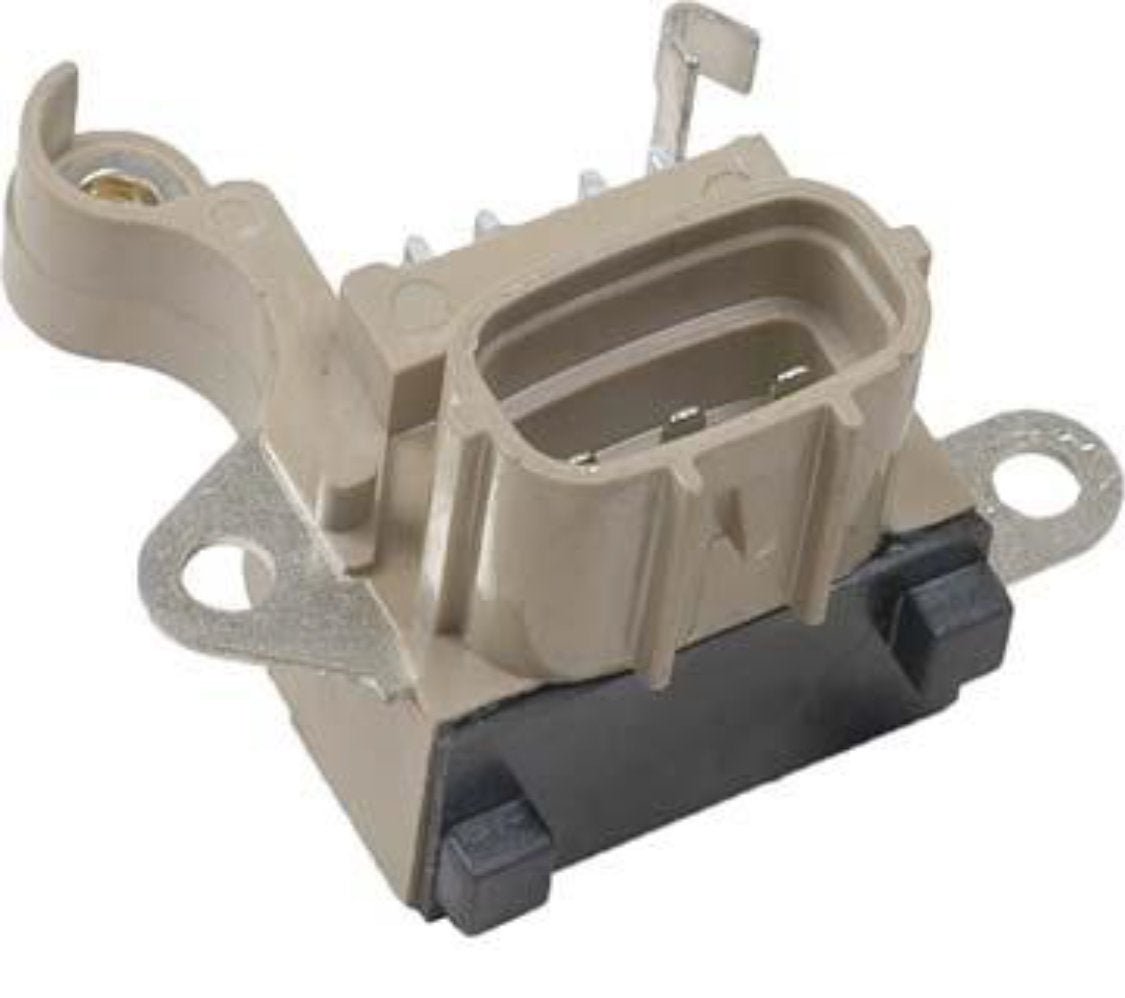

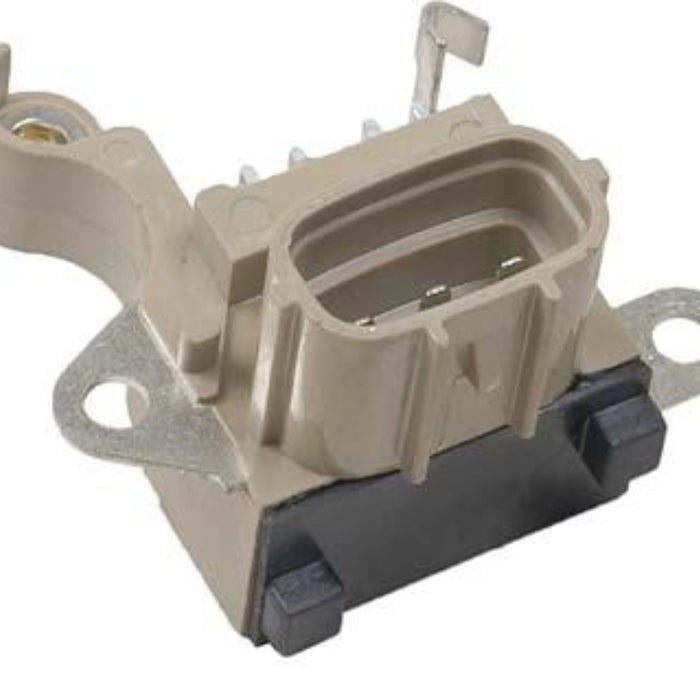

Description: Regulator, Electronic
OEM(s): Denso, Land Rover
Voltage: 12
Set Point: 14
Terminal ID: LI, RC, BVS
Polarity: Negative
Includes Brush Holder?: No
Activation: Ignition
Adjustable?: No
Circuit Type: B-Circuit
Includes Rectifier?: No
Includes Tolerance Ring?: No
Weight: 0.1 lbs / 0.05 kg
NOTES:
-RC or Stator Activated
-PCM Controlled
-5 Amps Field Rating
-With Field Short Circuit Protection
Replaces these part numbers:
Denso: 126600-3490, 3490
OEM UNIT NUMBERS
Denso: 104210-3691, 104210-3711
Land Rover: YLE500390, YLE500400\n \n
