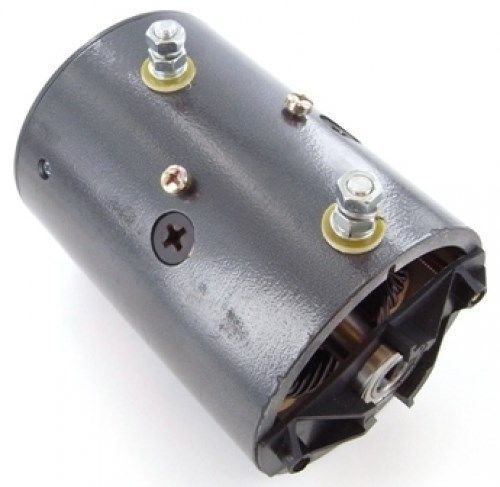

Clark, Monarch Hydraulics, Plymouth Hydraulic Motor MHN4002 MHN4002A MHN4002S

Description

Applications:

This is a Brand New Motor for Clark, Monarch Hydraulics,Plymouth Locomotive Applications

Specifications:

Insulated Ground
2 Post
Slotted Shaft
Double Ball Bearing

OEM(s): Monarch, AMETEK/Prestolite
Voltage: 12
Rotation: CCW
Field Hsg OD: 113.7mm / 4.476in
Overall Length: 185mm / 7.283in
Shaft OD: 15mm / 0.591in
Shaft Notes: Slotted Shaft
Terminal 1 Size: 5/16-18
Terminal 2 Size: 5/16-18
Approximate Weight: 16.495 lbs / 7.50 kg

Replaces these part numbers:

Clark
992312

PRESTOLITE
46-949, MHN4002, MHN4002A, MHN4002S

REFERENCE NUMBER
33-11069, 8079, 8117M

WESTERN MOTOR
46-949, W-8920, W-8920D
