Hydraulic Cylinder Angle Ram Replaces Fisher A5166 ( 2" x 16" )

$223.00

  • Brand: Denparts
  • Availability: In Stock
  • SKU: SN

Description Applications: SEE DIAGRAM FOR MEASUREMENTS Fisher Specifications: Bore x Stroke: 2 x 16 in Length of Housing (A): 22-9/16 in Collapsed Length (B): 24-13/16 in Extended Length (C): 40-13/16...

Description

Applications:

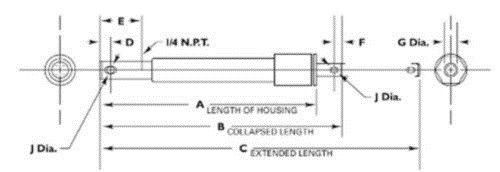

SEE DIAGRAM FOR MEASUREMENTS

Fisher

Specifications:

Bore x Stroke: 2 x 16 in

Length of Housing (A): 22-9/16 in

Collapsed Length (B): 24-13/16 in

Extended Length (C): 40-13/16 in

Dimension D: 3/4 in

Dimension E: 2-9/16 in

Diameter (G): 2 in

Diameter (J): 1-1/4 in

Port / Clevis: In Line

Weight per Cylinder: 28 lb

Lift Angle: A

Replaces these part numbers:

FISHER: A5166
