Description
Applications:
KAWASAKI Utility Vehicle (UTV) KAF450 Mule 1000 All 454cc
KAWASAKI Utility Vehicle (UTV) KAF540 Mule 2010 All 540cc
KAWASAKI Utility Vehicle (UTV) KAF540 Mule 2020 All 540cc
KAWASAKI Utility Vehicle (UTV) KAF540 Mule 2030 All 540cc
KAWASAKI Utility Vehicle (UTV) KAF620 Mule 2500 All 617cc
KAWASAKI Utility Vehicle (UTV) KAF620 Mule 2510 4x4 All 617cc
KAWASAKI Utility Vehicle (UTV) KAF620 Mule 2520 Turf All 617cc
KAWASAKI Utility Vehicle (UTV) KAF620 Mule 3000 All 617cc
KAWASAKI Utility Vehicle (UTV) KAF620 Mule 3010 4x4 All 617cc
KAWASAKI Utility Vehicle (UTV) KAF620 Mule 3010 4x4 Adv. Classic All 617cc
KAWASAKI Utility Vehicle (UTV) KAF620 Mule 3010 4x4 Hardwoods All 617cc
KAWASAKI Utility Vehicle (UTV) KAF620 Mule 3010 Trans 4x4 All 617cc
KAWASAKI Utility Vehicle (UTV) KAF620 Mule 3010 Trans 4x4 Hardwoods All 617cc
KAWASAKI Utility Vehicle (UTV) KAF620 Mule 3020 Turf All 617cc
Specifications:
Voltage: 12
CCA: 310
Capacity: (10HR) 21
Weight: 6.50kg / 14.33lbs
Dimensions (in / mm): L: 6.89 (175) W: 3.43 (87) H: 6.10 (155)
Assembly: Figure
Terminal Locations: 4
Terminal: 4, M6x2.5 (Parts#MPT2 and #MPT3)
Screws: 4, M6x7 (Part#2xMPS2)
Allen Wrench: 1, 4x4 (Part#MPAK2)
Terminal Caps: 4, 12x5.5 (Part#2xMPC2)
Spacer: 2, 20mm Bottom (Part# MPBS7), 13mm Back (Part#MPSS)
Case Color: Yellow
Replaces these part numbers:
KAWASAKI: 26012-3708, 26012-1384, 26012-1149, 26012-3720, 26012-3728, 26012-3701, 26012-3707, 26012-3721, 26012-1242, 26012-3719, 26012-1013, 26012-1101, 26012-1053, 26012-3727, 26012-3730, 26012-3704, K26012-3704, 26012-3725, 26012-1273, 26012-1315, K26012-3721, 26012-1118

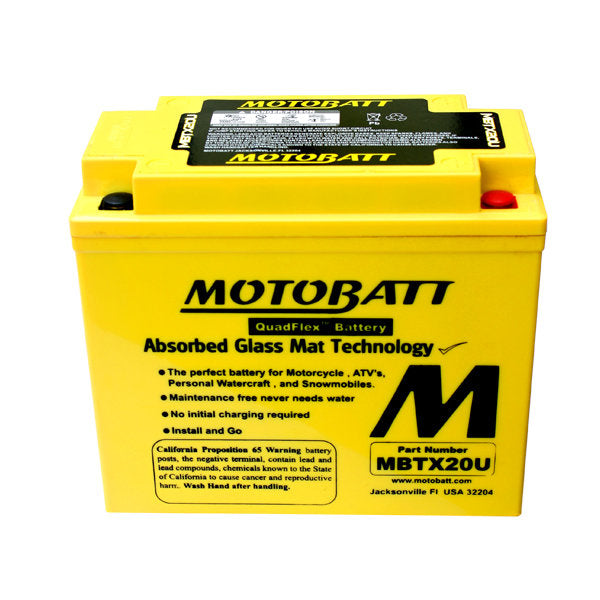

MOTOBATT: MBTX20U
REFERENCE NUMBER: YB16LA2, GT16BS, GT16LBS, YB16LA, YTX20HLBSPW, YB16LB, 12N164A, YB16BCX, YB16B, SYB16LB, YB16HLACX, YB16LB2, 12N164B, YTX20BS, 12N163A, YB16A, GYZ20HL, 12N163B, YTX20HBS, CTX19LBS, CTX19BS, GYZ20L, YB16CLB, YB16A2, YTX20LBS, YB16B2, YB16CB, YTX20HLBS
