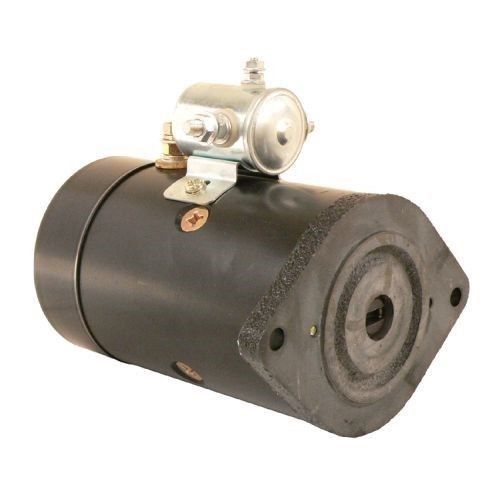

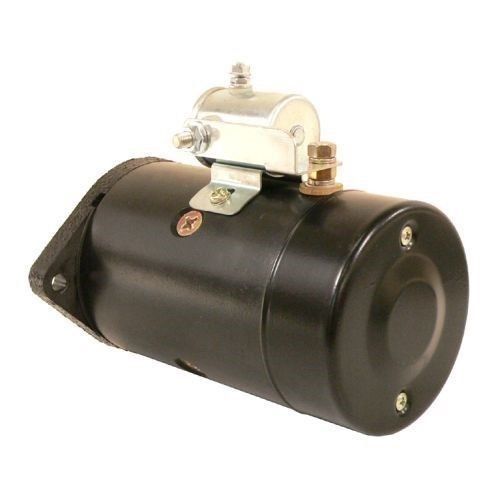

PUMP MOTOR FOR HALE FIRE TRUCK PRIMER PUMPS 1999 2000 DOUBLE BALL BEARING

Description

Applications:

HALE PRIMER PUMPS 1991-2000

Specifications:

Unit Type: Pump Motor
Voltage: 12
Rotation: CW
Field Housing O.D.: 4.449
Overall Length: 7.677 in.
Shaft Outside Diameter: 15.8 mm
Shaft Style: 6.2 mm Slot in End
Terminal 1 Size: 5/16 - 18
Housing Finish: Field case is black with aluminum solehold.
Weight: 19 lbs.

Notes: Double ball bearing. (2) 10.4 mm Mounting Holes in DE housing. Comes with Solenoid and connecting strap. Terminal 2 is ground terminal.

Replaces these part numbers:

ARROWHEAD: LPL0049
LESTER: 10787
PRESTOLITE: 46-3663, MCL6509, MCL6509S
REFERENCE NUMBER: 2000041000
WESTERN MOTORS: W-6542
