Description

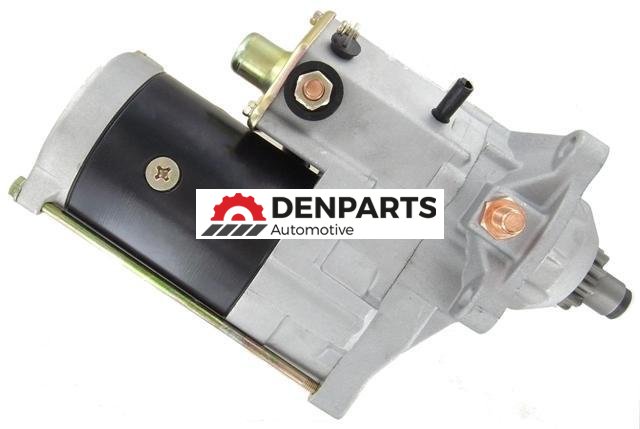

This is a Brand New Starter for Caterpillar
Models:
CATERPILLAR Ag & Industrial
ENGINES - INDUSTRIAL 3114 / 3116 1991-1993
TRACTORS - FARM 35 Challenger 3116 Engine 1994-2001
TRACTORS - FARM 45 Challenger 3116 Engine 1994-2001
CATERPILLAR Marine
ENGINES - MARINE 3114 4cyl, 268ci
ENGINES - MARINE 3116 6cyl, 403ci, 6.6L
Replaces:
CATERPILLAR
0R4318, 3E5382, 9W2946
NIPPONDENSO
128000-5720, 128000-5721, 128000-5722, 128000-5723
OEM(s): Denso, Caterpillar
Type: OSGR
Voltage: 12 Volts
kW: 3 kW
Rotation: CW
Teeth/Splines: 10 Teeth/Splines
Pinion/Splines OD: 38.7mm / 1.524in
DE Housing Number: 128401-5720
Mounting Hole 1: 11.0mm ID Unthreaded
Mounting Hole 2: 11.0mm ID Unthreaded
Mounting Hole 3: 11.0mm ID Unthreaded
Approximate Weight: 24.4 lbs / 11.09 kg
