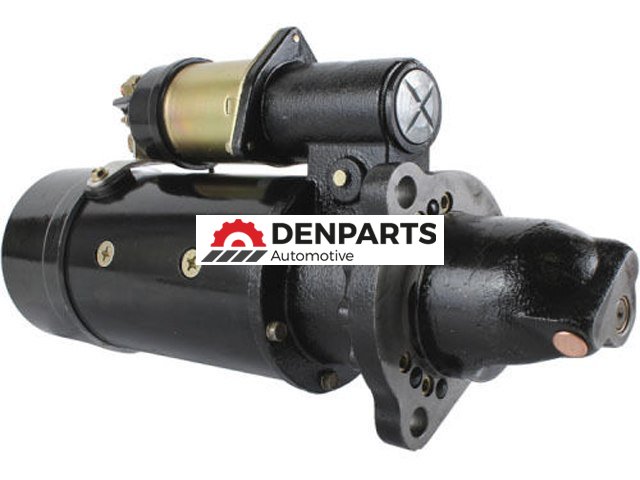

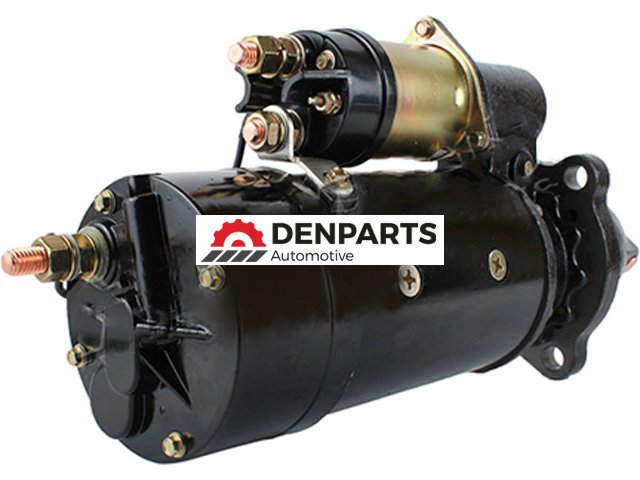

STARTER CUMMINS MEDIUM DUTY ENGINE C SERIES V SERIES 10461023, 10461168

$416.96

Brand: Your Store

Availability: In Stock
SKU: 6261N-002

Description\n Applications: Caterpillar Engine - Marine 3406 6cyl, 893ci, 14.6L 1985-19953408 8cyl, 1099ci, 18.0L 1986-19903412 12cyl, 1649ci, 27.0L 1986-1990Cummins Engines Engine Medium Duty C Series 8.3L 1987-1988V Series 9.1L 1983-1985Specifications:...

Description

\n Applications:

Caterpillar Engine - Marine
3406 6cyl, 893ci, 14.6L 1985-1995
3408 8cyl, 1099ci, 18.0L 1986-1990
3412 12cyl, 1649ci, 27.0L 1986-1990

Cummins Engines Engine Medium Duty
C Series 8.3L 1987-1988
V Series 9.1L 1983-1985

Specifications:

Description: Starter
OEM(s): Delco
Family: Delco 42MT
Voltage: 12
Power: 7.8kW / 10.45HP
Rotation: CCW
Starter Type: DD
Number of Teeth: 11
Gear OD: 2.22in / 56.4mm
Solenoid Position: 38 Degrees
Mtg Ear 1 Hole: 16.0mm Unthreaded
Mtg Ear 2 Hole: 16.0mm Unthreaded
Mtg Ear 3 Hole: 16.0mm Unthreaded
Weight: 60.15 lbs / 27.34 kg

Replaces these part numbers:

Delco: 10461023, 10461168, 1990395, 1990430
Dixie Electric: TS-1569
J & N: 410-12209R
Lester: 6261
