Starter Ford Freightliner Kenworth Medium & Heavy-Duty Trucks 10461768, 19026027

Description

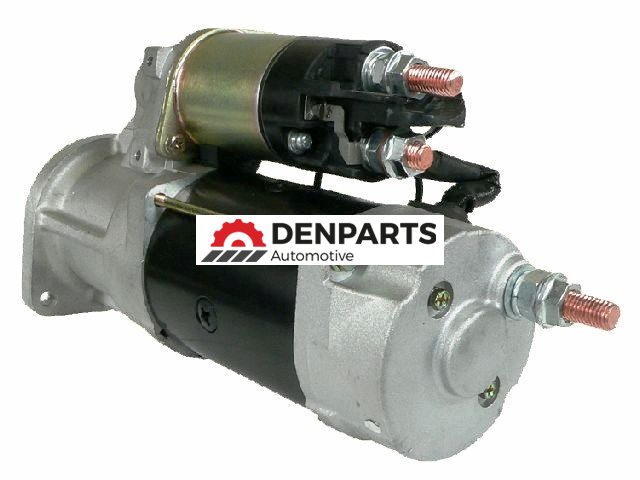

This is a Brand New Aftermarket Starter Fits Ford, Freightliner, and Kenworth

Models:

Ford Med & HD Trk

Medium & Heavy-Duty Trucks

1992 F600 / F700 / F800 / F900 Trucks Cummins 8.3L-504 (FD1460)
1993 F600 / F700 / F800 / F900 Trucks Cummins 8.3L-504 (FD1460)
1994 F600 / F700 / F800 / F900 Trucks Cummins 8.3L-504 (FD1460)
1995 F600 / F700 / F800 / F900 Trucks Cummins 8.3L-504 (FD1460)
1996 F600 / F700 / F800 / F900 Trucks Cummins 8.3L-504 (FD1460)
1997 F600 / F700 / F800 / F900 Trucks Cummins 8.3L-504 (FD1460)
1998 F600 / F700 / F800 / F900 Trucks Cummins 8.3L-504 (FD1460)
1999 F600 / F700 / F800 / F900 Trucks Cummins 8.3L-504 (FD1460)

1992 L6000 / 7000 / 8000 / 9000 Trucks Cummins 8.3L-504 (FD1460)
1993 L6000 / 7000 / 8000 / 9000 Trucks Cummins 8.3L-504 (FD1460)
1994 L6000 / 7000 / 8000 / 9000 Trucks Cummins 8.3L-504 (FD1460)
1995 L6000 / 7000 / 8000 / 9000 Trucks Cummins 8.3L-504 (FD1460)
1996 L6000 / 7000 / 8000 / 9000 Trucks Cummins 8.3L-504 (FD1460)
1997 L6000 / 7000 / 8000 / 9000 Trucks Cummins 8.3L-504 (FD1460)
1998 L6000 / 7000 / 8000 / 9000 Trucks Cummins 8.3L-504 (FD1460)
1999 L6000 / 7000 / 8000 / 9000 Trucks Cummins 8.3L-504 (FD1460)

Freightliner Med & HD Trk

Medium & Heavy-Duty Trucks

2000 FL 50 Caterpillar 3126
2001 FL 50 Caterpillar 3126
2002 FL 50 Caterpillar 3126
2003 FL 50 Caterpillar 3126
2004 FL 50 Caterpillar 3126

2000 FL 60 Caterpillar 3126
2001 FL 60 Caterpillar 3126
2002 FL 60 Caterpillar 3126
2003 FL 60 Caterpillar 3126
2004 FL 60 Caterpillar 3126

2000 FL 70 Caterpillar 3126
2001 FL 70 Caterpillar 3126
2002 FL 70 Caterpillar 3126
2003 FL 70 Caterpillar 3126
2004 FL 70 Caterpillar 3126

2000 FL 80 Caterpillar 3126
2001 FL 80 Caterpillar 3126
2002 FL 80 Caterpillar 3126
2003 FL 80 Caterpillar 3126
2004 FL 80 Caterpillar 3126

2004 FL 80 Caterpillar C-7
2005 FL 80 Caterpillar C-7

2003 M2 Business Class Caterpillar 3126
2004 M2 Business Class Caterpillar 3126

2003 M2 Business Class Caterpillar C-7
2004 M2 Business Class Caterpillar C-7
2005 M2 Business Class Caterpillar C-7
2006 M2 Business Class Caterpillar C-7
2007 M2 Business Class Caterpillar C-7

Kenworth Med & HD Trk

Medium & Heavy-Duty Trucks

2004 T300 Caterpillar C-7
2005 T300 Caterpillar C-7
2006 T300 Caterpillar C-7
2007 T300 Caterpillar C-7

Replaces:

Delco
10461768, 19026027, 8200076

Elpar
011103675

OEM(s):Delco
Family:Delco 38MT
Type:PLGR
Voltage:12 Volts
kW:4.6 kW
Rotation:CW
Teeth/Splines:10 Teeth/Splines
Pinion/Splines OD:38.4mm / 1.512in
Mounting Hole 1:10.0mm ID:Unthreaded
Mounting Hole 2:10.0mm ID:Unthreaded
Mounting Hole 3:10.0mm ID:Unthreaded
Approximate Weight:28.2lbs / 12.82kg

Notes:
IMS Relay,
1/2-13 Threaded Terminals,
Solenoid Positioned @ 127 Degrees
