Description
Applications:
BRIGGS & STRATTON 18HP
400417-0119-01, 400417-1501-01, 400417-1502-01, 400437-0015-01, 400437-0016-01, 400437-0111-01, 400437-0112-01, 400437-0113-99, 400437-0120-01, 400437-0121-99, 400437-0122-01, 400437-1200-01, 400437-1202-01, 400437-1205-01, 400437-4015-01, 400437-4016-01, 400447-1201-01, 400447-1203-01, 400447-1206-01, 400447-1207-01, 400447-4002-01, 400707-0010-01, 400707-0030-01, 400707-0040-99, 400707-0041-01, 400707-0100-01, 400707-0101-01, 400707-0102-99, 400707-0110-01, 400707-0111-01

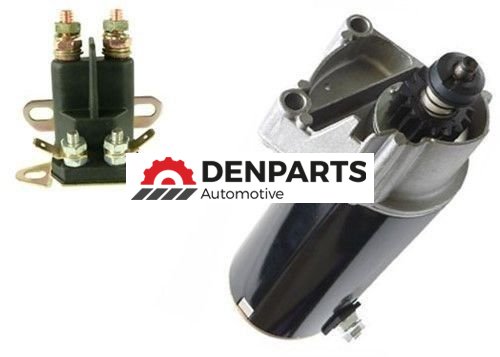

STARTER
BRIGGS & STRATTON Engines Air Cooled All 14HP Horizontal
BRIGGS & STRATTON Engines Air Cooled All 14HP Vertical
BRIGGS & STRATTON Engines Air Cooled All 16HP Horizontal
BRIGGS & STRATTON Engines Air Cooled All 18HP Horizontal
SOLENOID
Exmark- 52" and 60" Turf Tracer Floating Deck Walk-Behind Serial No. 190,000 - higher, without ECS
Scag- Freedom Z and SWZT Walk Behind
Toro- 60" and 72" Z 500S Z Master
Specifications:
STARTER
Voltage: 12 Volts
Rotation: CCW
Teeth/Splines: 16 Teeth/Splines
Pinion/Splines OD: 40.3mm / 1.587in
Mounting Hole 1: 8.3mm ID Unthreaded
Mounting Hole 2: 8.3mm ID Unthreaded
Mounting Hole 3: 10.3mm ID Unthreaded
New or Remanufactured: New
Approximate Weight: 5.595 lbs / 2.54 kg
Length: 102mm
SOLENOID
Part Type: SOLENOID / RELAY
Voltage: 12
Universal Style Double Pole
Dimension: Universal Mount; Main Studs 1/4-20 or 5/16-24 (Adaptable); Ignition is 12-24 Stud w/Spade Terminal; Ground is 12-24 Stud w/Spade Terminal; Isolated Ground
Replaces these part numbers:
STARTER
Briggs & Stratton: 399928, 495100, 498148
Lester: 5744
PIC Picture ID: 106-206
SOLENOID
BRIGGS & STRATTON: 5410H, 5410D, BS-5410K, 5410K, 745001MA
STENS: 435-435
Ariens: 03551000
AYP: 109946,
Case: C-266525, C-33025
Castelgarden: 118399062/0, 18736100/0, 1873611
Cub Cadet: 725-04439A
Exmark: 1-513075, 117-1197, 513075
Gilson: 212655
Grasshopper: 184251
Gravely: 044766, 045071
Husqvarna: 532109081, 532109946, 532146154
John Deere: AM130365, AM132990, AM133094, AM138497, GY00185
Lawn-Boy: 740207
MTD: 725-04439A
Sca 483278
Simplicity: 1685290, 1685290SM, 1686981, 1686981SM, 1686982, 1686982SM, 170051, 170051SM, 1700751, 1700751SM
Snapper: 1-8604, 1755382YP, 7018604, 7075622, 7075622SM, 75622
Stiga: 1134-2946-02, 1134-2962-01, 9400-0070-00
Toro: 1-513075, 110116, 1101162, 110167, 117-1197, 47-1910, 740207
Troy-Bilt: 1752137, 1752137P, 1753539
