Starter Yamaha Marine 75 100 HP Mercury 50-804312T1

Description

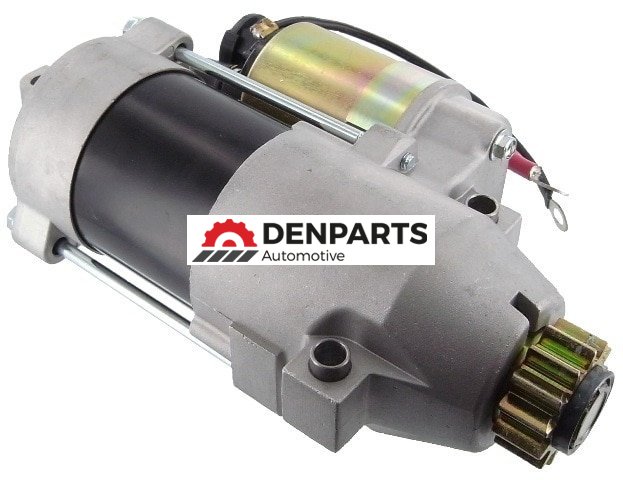

This is a Brand New Starter for Mariner, Mercury, and Yamaha

Models:

MARINER Marine

ENGINES - MARINE OUTBOARD

2000 75ELHPT 4-Stroke 84.6ci - 75 H.P.
2001 75ELHPT 4-Stroke 84.6ci - 75 H.P.

2000 75ELPT 4-Stroke 84.6ci - 75 H.P.
2001 75ELPT 4-Stroke 84.6ci - 75 H.P.

2000 90ELHPT 4-Stroke 1.6L - 97.4ci - 90 H.P.
2001 90ELHPT 4-Stroke 1.6L - 97.4ci - 90 H.P.

2000 90ELPT 4-Stroke 1.6L - 97.4ci - 90 H.P.
2001 90ELPT 4-Stroke 1.6L - 97.4ci - 90 H.P.

2000 90ELPT Coastal 4-Stroke 1.6L - 97.4ci - 90 H.P.

2001 90EXLPT Saltwater 4-Stroke 1.6L - 97.4ci - 90 H.P.

MERCURY Marine

ENGINES - MARINE OUTBOARD

2000 75ELHPT 4-Stroke 84.6ci - 75 H.P.
2001 75ELHPT 4-Stroke 84.6ci - 75 H.P.

2000 75ELPT 4-Stroke 84.6ci - 75 H.P.
2001 75ELPT 4-Stroke 84.6ci - 75 H.P.
2002 75ELPT 4-Stroke 84.6ci - 75 H.P.
2003 75ELPT 4-Stroke 84.6ci - 75 H.P.
2004 75ELPT 4-Stroke 84.6ci - 75 H.P.
2005 75ELPT 4-Stroke 84.6ci - 75 H.P.

2000 E90ELHPT 4-Stroke 1.6L - 97.4ci - 90 H.P.
2001 E90ELHPT 4-Stroke 1.6L - 97.4ci - 90 H.P.

2000 90ELPT 4-Stroke 1.6L - 97.4ci - 90 H.P.
2001 90ELPT 4-Stroke 1.6L - 97.4ci - 90 H.P.
2002 90ELPT 4-Stroke 1.6L - 97.4ci - 90 H.P.
2003 90ELPT 4-Stroke 1.6L - 97.4ci - 90 H.P.
2004 90ELPT 4-Stroke 1.6L - 97.4ci - 90 H.P.
2005 90ELPT 4-Stroke 1.6L - 97.4ci - 90 H.P.

2004 90ELPT Saltwater 4-Stroke 1.6L - 97.4ci - 90 H.P.
2005 90ELPT Saltwater 4-Stroke 1.6L - 97.4ci - 90 H.P.

2001 90EXLPT Saltwater 4-Stroke 1.6L - 97.4ci - 90 H.P.
2002 90EXLPT Saltwater 4-Stroke 1.6L - 97.4ci - 90 H.P.
2003 90EXLPT Saltwater 4-Stroke 1.6L - 97.4ci - 90 H.P.
2004 90EXLPT Saltwater 4-Stroke 1.6L - 97.4ci - 90 H.P.
2005 90EXLPT Saltwater 4-Stroke 1.6L - 97.4ci - 90 H.P.

YAMAHA Marine

OUTBOARD MOTORS

1999 F100TLR
2000 F100TLR
2001 F100TLR
2002 F100TLR

1999 F100TXR
2000 F100TXR
2001 F100TXR
2002 F100TXR

2003 F75TLR
2004 F75TLR

2001 F80TJR
2002 F80TJR

1999 F80TLR
2000 F80TLR
2001 F80TLR
2002 F80TLR

2003 F90TJR
2004 F90TJR

2003 F90TLR
2004 F90TLR

Replaces:

API MARINE
MOT5017

ARCO MARINE
3430

HITACHI
S114-828B

MERCURY MARINE
50-804312T1

SIERRA MARINE
18-6425

YAMAHA
67F-81800-00, 67F-81800-01, 67F-81800-02

OEM(s):Hitachi, Mercury Marine, Yamaha
Type:PMGR
Voltage:12 Volts
kW:1.4 kW
Rotation:CCW
Teeth/Splines:13 Teeth/Splines
Pinion/Splines OD:39.9mm / 1.571in
Mounting Hole 1:8.5 IDUnthreaded
Mounting Hole 2:8.5 IDUnthreaded
Mounting Hole 3:8.5 IDUnthreaded
Approximate Weight:7.86 lbs / 3.57 kg

Notes:
Battery Stud M8-1.25 Threaded,
130mm Ignition Lead,
100mm Battery Lead
