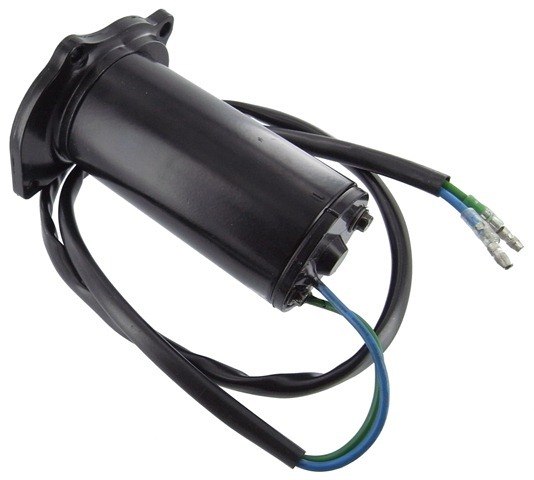

Tilt/Trim Motor Mercury Marine 25HP 50HP 827675A1

Description

This is a Brand New Tilt/Trim Motor for Mercury Marine

Models:

MERCURY Marine

TILT & TRIM All Models

25 H.P.

50 H.P.

Replaces:

API MARINE
PT498NM

ARCO MARINE
6255

MERCURY MARINE
827675A1

SIERRA MARINE
18-6286

OEM(s):Mercury Marine
Voltage:12
Rotation:Reversible
Field Hsg OD:52mm / 2.047in
Overall Length:134mm / 5.276in
Shaft OD:7.2mm / 0.283in
Shaft Notes:3.8mm Slotted
Terminal 1 Size:Crimp
Terminal 2 Size:Crimp
Approximate Weight:2.6 lbs / 1.18 kg

Notes:
(4) 6.7mm ID Unthreaded Mounting Holes
