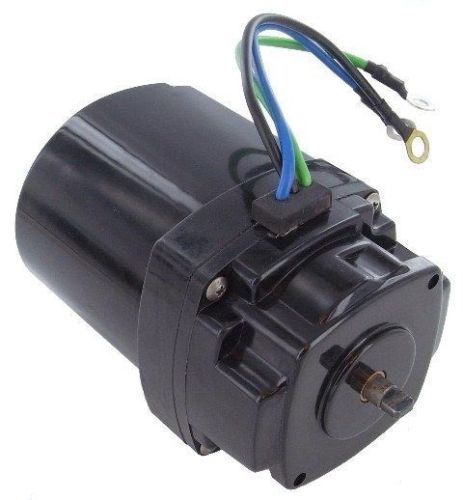

Tilt Trim Motor Mercury Mercruiser Various Inboard Outboard w/ Oildyne Pumps

Description

Applications:

This is a Brand New Tilt/Trim Motor for Mercruiser / Mercury Marine

Fits Various Mercury Outboard and Mercruiser Inboard/Outboard Utilizing Oildyne Pumps

Specifications:

OEM: Mercury Marine
Voltage: 12V
Rotation: Reversible
Field Housing OD: 91.8 mm / 3.614 in
Overall Length: 170.5 mm / 6.713 in
Shaft OD: 9.6 mm / 0.378 in
Shaft Notes: 3.8 mm Thick Tang
Approximate Weight: 6.325 lbs / 2.87 kg

Notes:
Includes (3) 178 mm Long Leads with Ring Terminals
Replaces Early-Style Square OE Motor

Replaces these part numbers:

API Marine
PT500NM, PT502RM

Arco Marine
6218

Mercury Marine
17649, 17649A1, 17649T
87828, 88183A12, 891736T

Remy Small Motor
RT05004

Sierra Marine
18-6722
