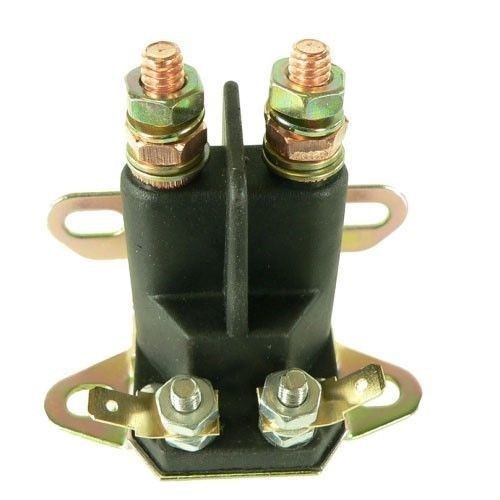

Universal Solenoid Replaces John Deere AM130365 AM132990 AM133094 AM138497

Description

Applications:

Exmark- 52" and 60" Turf Tracer Floating Deck Walk-Behind Serial No. 190,000 - higher, without ECS

Scag- Freedom Z and SWZT Walk Behind

Toro- 60" and 72" Z 500S Z Master

Specifications:

Part Type: SOLENOID / RELAY
Voltage: 12
Universal Style Double Pole
Dimension: Universal Mount; Main Studs 1/4-20 or 5/16-24 (Adaptable); Ignition is 12-24 Stud w/Spade Terminal; Ground is 12-24 Stud w/Spade Terminal; Isolated Ground

Replaces these part numbers:

BRIGGS & STRATTON: 5410H, 5410D, BS-5410K, 5410K, 745001MA
STENS: 435-435
Ariens: 03551000
AYP: 109946,
Case: C-266525, C-33025
Castelgarden: 118399062/0, 18736100/0, 1873611
Cub Cadet: 725-04439A
Exmark: 1-513075, 117-1197, 513075
Gilson: 212655
Grasshopper: 184251
Gravely: 044766, 045071
Husqvarna: 532109081, 532109946, 532146154
John Deere: AM130365, AM132990, AM133094, AM138497, GY00185
Lawn-Boy: 740207
MTD: 725-04439A
Sca 483278
Simplicity: 1685290, 1685290SM, 1686981, 1686981SM, 1686982, 1686982SM, 170051, 170051SM, 1700751, 1700751SM
Snapper: 1-8604, 1755382YP, 7018604, 7075622, 7075622SM, 75622
Stiga: 1134-2946-02, 1134-2962-01, 9400-0070-00
Toro: 1-513075, 110116, 1101162, 110167, 117-1197, 47-1910, 740207
Troy-Bilt: 1752137, 1752137P, 1753539
