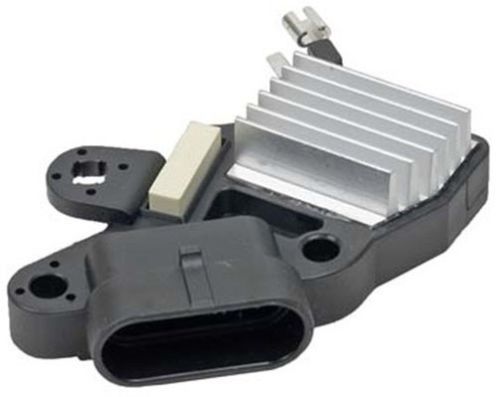

Voltage Regulator Delco 10480341 10480383 10480390 10480476 15768829

Description

Applications:

Delco AD230, AD237 & AD244 Alternators

Cadillac Truck
Escalade V8 6.0L 5967cc 364cid 2002

Chevrolet Medium/Heavy Truck
C3500HD V8 8.1L 496cid 2001-2002

Chevrolet Truck
Avalanche 1500 V8 5.3L 5328cc 325cid 2002
Avalanche 2500 V8 8.1L 496cid 2002
C3500 V8 8.1L 496cid 2001-2002
Silverado 1500 V6 4.3L 262cid 1999-2000
Silverado 1500 V6 4.3L 262cid VIN W 2001
Silverado 1500 V8 4.8L 294cid 1999-2000
Silverado 1500 V8 4.8L 294cid VIN V 2001
Silverado 1500 V8 5.3L 5328cc 325cid 1999-2001
Silverado 1500 V8 5.3L 5328cc 325cid VIN Z 2002
Silverado 1500 HD V8 6.0L 5967cc 364cid 2001
Silverado 2500 V8 5.3L 5328cc 325cid VIN T 1999-2000
Silverado 2500 V8 6.0L 5967cc 364cid 2001
Silverado 2500 V8 6.0L 5967cc 364cid VIN U 1999-2000
Silverado 2500 HD V8 6.0L 5967cc 364cid 2001
Silverado 2500 HD V8 6.6L 6599cc 403ci - - - - - 2001
Silverado 2500 HD V8 8.1L 496cid 2001
Silverado 3500 V8 6.0L 5967cc 364cid 2001
Silverado 3500 V8 6.6L 400cid 2001
Silverado 3500 V8 8.1L 496cid 2001
Suburban 1500 V8 5.3L 5328cc 325cid 2000-2002
Suburban 2500 V8 6.0L 5967cc 364cid 2000-2002
Suburban 2500 V8 8.1L 496cid 2001-2002
Tahoe V8 4.8L 294cid 2000-2002
Tahoe V8 5.3L 5328cc 325cid 2000-2002

Chevrolet Van
Astro V6 4.3L 262cid 2001-2004
Express 1500 V6 4.3L 262cid 2001-2002
Express 1500 V8 5.0L 305cid 2001-2002
Express 1500 V8 5.7L 350cid 2001-2002
Express 2500 V6 4.3L 262cid 2001-2002
Express 2500 V8 5.0L 305cid 2001-2002
Express 2500 V8 5.7L 350cid 2001-2002
Express 2500 V8 6.5L 395cid Diesel 2001-2002
Express 3500 V8 5.7L 350cid 2001-2002
Express 3500 V8 6.5L 395cid Diesel 2001-2002
Express 3500 V8 8.1L 496cid 2001-2002

GMC Medium/Heavy Truck
C3500HD V8 8.1L 496cid 2001-2002

GMC Truck
Sierra 1500 V6 4.3L 262cid 1999-2001
Sierra 1500 V8 4.8L 294cid 1999
Sierra 1500 V8 4.8L 294cid 2001
Sierra 1500 V8 4.8L 294cid VIN V 2000
Sierra 1500 V8 5.3L 5328cc 325cid 1999-2001
Sierra 1500 V8 5.3L 5328cc 325cid VIN T 2002
Sierra 1500 V8 5.3L 5328cc 325cid VIN Z 2002
Sierra 1500 HD V8 6.0L 5967cc 364cid 2001
Sierra 2500 V8 5.3L 323cid 1999-2000
Sierra 2500 V8 6.0L 5967cc 364cid 1999-2001
Sierra 2500 HD V8 6.0L 5967cc 364cid 2001
Sierra 2500 HD V8 6.6L 6599cc 403ci VIN 1 2001
Sierra 2500 HD V8 8.1L 496cid VIN G 2001
Sierra 3500 V8 6.0L 5967cc 364cid 2001
Sierra 3500 V8 6.6L 403cid 2001
Sierra 3500 V8 8.1L 496cid 2001
Sierra C3 V8 6.0L 5967cc 364cid 2001
Yukon V8 4.8L 294cid 2000-2002
Yukon V8 5.3L 5328cc 325cid 2000-2002
Yukon XL 1500 V8 5.3L 5328cc 325cid 2000-2002
Yukon XL 2500 V8 6.0L 5967cc 364cid 2000-2002
Yukon XL 2500 V8 8.1L 496cid 2001-2002

GMC Van
Safari V6 4.3L 262cid 2001-2004
Savana 1500 V6 4.3L 262cid 2001-2002
Savana 1500 V8 5.0L 305cid 2001-2002
Savana 1500 V8 5.7L 350cid 2001-2002
Savana 2500 V6 4.3L 262cid 2001-2002
Savana 2500 V8 5.0L 305cid 2001-2002
Savana 2500 V8 5.7L 350cid 2001-2002
Savana 2500 V8 6.5L 395cid Diesel 2001-2002
Savana 3500 V8 5.7L 350cid 2001-2002
Savana 3500 V8 6.5L 395cid Diesel 2001-2002
Savana 3500 V8 8.1L 496cid 2001-2002

Oldsmobile Car
Intrigue V6 3.5L 214cid 1999-2002

Specifications:

Description: Regulator, Electronic
OEM(s): Delco
Voltage: 12
Set Point: 14.8
Terminal ID: P, L, I(F), S
Polarity: Negative
Includes Brush Holder?: No
Activation: Ignition
Adjustable?: No
Circuit Type: B-Circuit
Includes Rectifier?: No
Includes Tolerance Ring?: No
Load Response Control: 2.5 Seconds
Notes:
-OEM Type B+ Connection
-B+ connection made at rectifier lead-frame (not under B+ stud spacer)
-current limiting, thermal shutdown, load dump protection, shorted field & lamp circuit protection
-Welded construction - no solder joints for hi-temperature reliability & increased field life

Replaces these part numbers:

Delco: 10458200, 10483643, 10486311, 10494747, 19051915, 19053013, 19053730

OEM UNIT NUMBERS

Delco: 10311493, 10464395, 10464405, 10464443, 10464452, 10464455, 10480234, 10480285, 10480326, 10480327, 10480341, 10480383, 10480390, 10480476, 15768829, 19244728, 19244731
