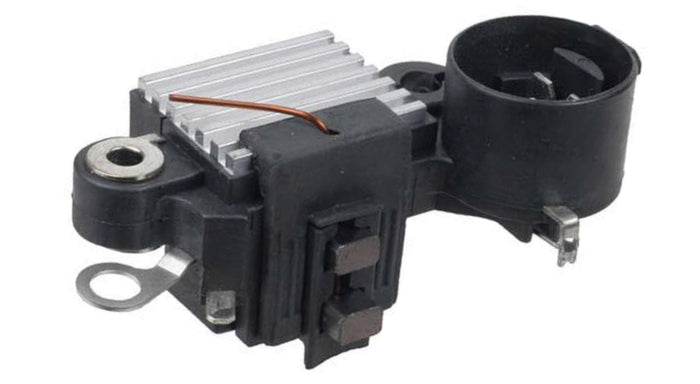

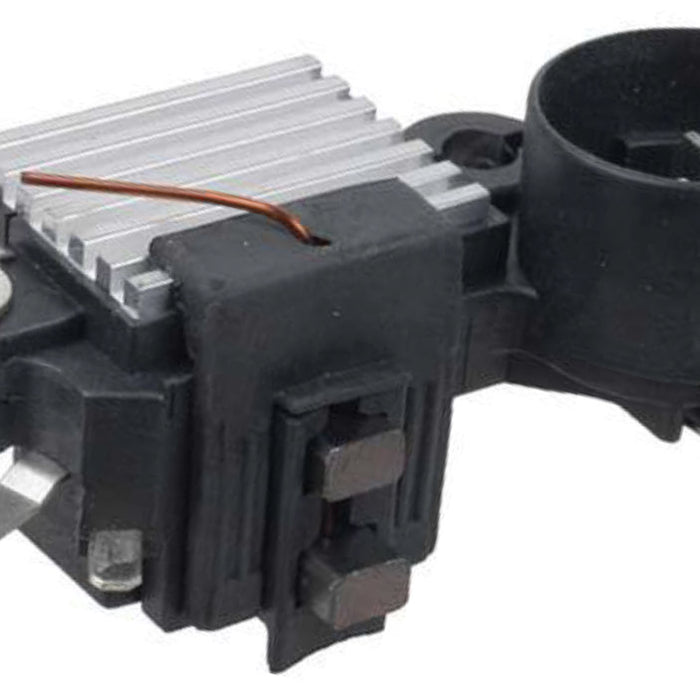

Voltage Regulator For Isuzu Pickup 2.3L 2.6L 1988-1995 8944367300 8944492650

Description

Applications:

Isuzu Truck Pickup L4 2.3L 2254cc 1988
Isuzu Truck Pickup L4 2.3L 2254cc 1989
Isuzu Truck Pickup L4 2.3L 2254cc 1990
Isuzu Truck Pickup L4 2.3L 2254cc 1991
Isuzu Truck Pickup L4 2.3L 2254cc 1992
Isuzu Truck Pickup L4 2.3L 2254cc 1993
Isuzu Truck Pickup L4 2.3L 2254cc 1994
Isuzu Truck Pickup L4 2.3L 2254cc 1995

Isuzu Truck Pickup L4 2.6L 2559cc 1988
Isuzu Truck Pickup L4 2.6L 2559cc 1989
Isuzu Truck Pickup L4 2.6L 2559cc 1990
Isuzu Truck Pickup L4 2.6L 2559cc 1991
Isuzu Truck Pickup L4 2.6L 2559cc 1992
Isuzu Truck Pickup L4 2.6L 2559cc 1993
Isuzu Truck Pickup L4 2.6L 2559cc 1994
Isuzu Truck Pickup L4 2.6L 2559cc 1995

Specifications:

TYPE: Regulator
CIRCUIT: A
PLUG TYPE: ROUND
SYSTEM VOLTAGE: 12
TERMINALS: S, IG, L
VOLT SET: 14.6

NOTE: Active lamp function - with output

Replaces these part numbers:

Hitachi: GD312184-A, L150-73155
Isuzu: 8-94462-849-0, 8944103350

OEM UNIT NUMBERS

Hitachi: LR150-704, LR150-704H, LR160-718, LR160-718H, LR160-725

Honda: 2-91276-336-0, 2-91276-336-0RM

Isuzu: 2-91276-336-0RM, 2912763360, 2912769200, 2912769300, 2912769320, 8943367300, 8943367310, 8944367300, 8944492650, 8944492660, 8970630260, 8970845790
