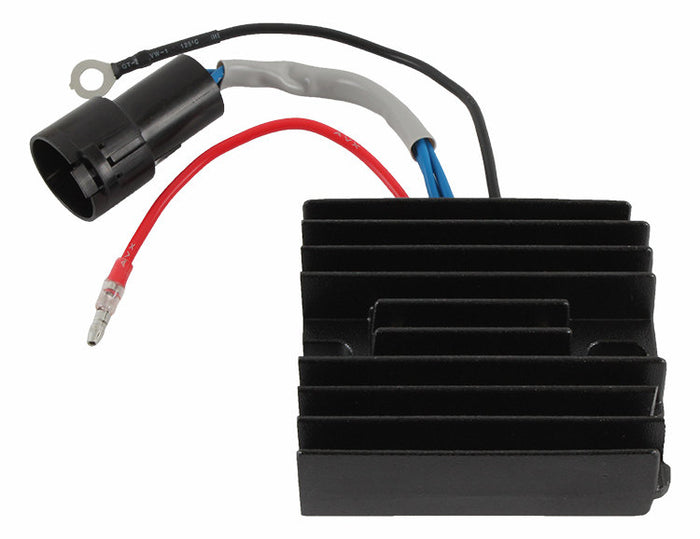

Voltage Regulator For Mercury 75-90 HP 4 Stroke Marine 804278A12, 804278T11

Description

Applications:

Mercury 75-90HP 4-Stroke

Yamaha 80-100HP Outboard 2000
Yamaha 80-100HP Outboard 2001
Yamaha 80-100HP Outboard 2002
Yamaha 80-100HP Outboard 2003
Yamaha 80-100HP Outboard 2004
Yamaha 80-100HP Outboard 2005

Specifications:

Part Type: RECTIFIER / REGULATOR
Voltage: 12
88.6mm L x 80mm W x 28mm T
Plug - (3) Green Wires with Round Plug 168mm OAL
(1) Red Wire with Male Bullet 138mm OAL
(1) Black Wire with Eyelet 172mm OAL

Replaces these part numbers:

Mercury Marine: 804278A12, 804278T11
Yamaha: 67F-81960-10-00, 67F-81960-11-00, 67F-81960-12-00
