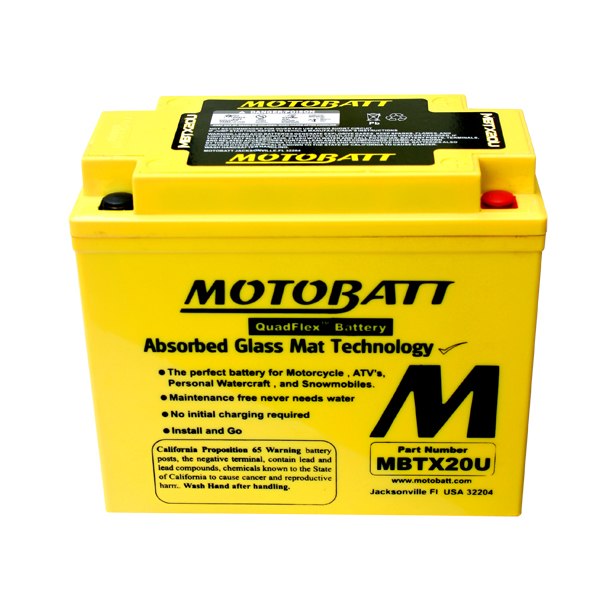

Battery For Cagiva ELEFANT 750 GRAN CANYON 900 NAVIGATOR 1000 Motorcycle

Description

Applications:

CAGIVA Motorcycles Elefant 750 Trail 1987 750cc
CAGIVA Motorcycles Elefant 750 Trail 1988 750cc
CAGIVA Motorcycles Elefant 750 Trail 1989 750cc
CAGIVA Motorcycles Elefant 750 Trail 1990 750cc
CAGIVA Motorcycles Elefant 750 Trail 1991 750cc
CAGIVA Motorcycles Elefant 750 Trail 1992 750cc

CAGIVA Motorcycles Gran Canyon 900 1998 900cc
CAGIVA Motorcycles Gran Canyon 900 1999 900cc
CAGIVA Motorcycles Gran Canyon 900 2000 900cc

CAGIVA Motorcycles Navigator 1000 2000 1000cc
CAGIVA Motorcycles Navigator 1000 2001 1000cc
CAGIVA Motorcycles Navigator 1000 2002 1000cc
CAGIVA Motorcycles Navigator 1000 2003 1000cc
CAGIVA Motorcycles Navigator 1000 2004 1000cc
CAGIVA Motorcycles Navigator 1000 2005 1000cc

Specifications:

Voltage: 12
CCA: 310
Capacity: (10HR) 21
Weight: 6.50kg / 14.33lbs
Dimensions (in / mm): L: 6.89 (175) W: 3.43 (87) H: 6.10 (155)
Assembly: Figure
Terminal Locations: 4
Terminal: 4, M6x2.5 (Parts#MPT2 and #MPT3)
Screws: 4, M6x7 (Part#2xMPS2)
Allen Wrench: 1, 4x4 (Part#MPAK2)
Terminal Caps: 4, 12x5.5 (Part#2xMPC2)
Spacer: 2, 20mm Bottom (Part# MPBS7), 13mm Back (Part#MPSS)
Case Color: Yellow

Replaces these part numbers:

CAGIVA: 800088509, 800098814

MOTOBATT: MBTX20U

REFERENCE NUMBER: YB16LA2, GT16BS, GT16LBS, YB16LA, YTX20HLBSPW, YB16LB, 12N164A, YB16BCX, YB16B, SYB16LB, YB16HLACX, YB16LB2, 12N164B, YTX20BS, 12N163A, YB16A, GYZ20HL, 12N163B, YTX20HBS, CTX19LBS, CTX19BS, GYZ20L, YB16CLB, YB16A2, YTX20LBS, YB16B2, YB16CB, YTX20HLBS
