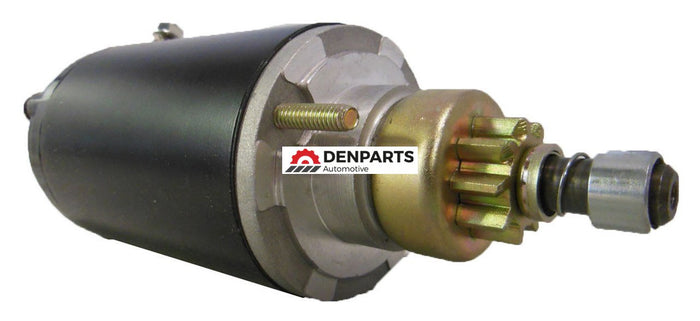

Starter Cub Cadet Lawn Tractor 52-098-03, 52-098-09

Description

This is a Brand New Starter for Cub Cadet and Kohler

Models:

CUB CADET Outdoor Power Equip.

1990 1535 Kohler 15HP Gas
1991 1535 Kohler 15HP Gas

1990 1541 Kohler 15HP Gas
1991 1541 Kohler 15HP Gas

1985 1710 Kohler 17HP Gas

1985 1711 Kohler 17HP Gas

1985 1712 Kohler 17HP Gas

1987 1806 Kohler 18HP Gas
1988 1806 Kohler 18HP Gas
1989 1806 Kohler 18HP Gas

1986 1810 Kohler 18HP Gas
1987 1810 Kohler 18HP Gas
1988 1810 Kohler 18HP Gas
1989 1810 Kohler 18HP Gas

1986 Kohler 18HP Gas
1987 Kohler 18HP Gas
1988 Kohler 18HP Gas
1989 Kohler 18HP Gas

1986 1812 Kohler 18HP Gas
1987 1812 Kohler 18HP Gas
1988 1812 Kohler 18HP Gas
1989 1812 Kohler 18HP Gas

1990 1860 Kohler 18HP Gas
1991 1860 Kohler 18HP Gas

1992 1861 Kohler 18HP Gas

1990 1862 Kohler 18HP Gas
1991 1862 Kohler 18HP Gas
1992 1862 Kohler 18HP Gas

1987 1872 Kohler 18HP Gas
1988 1872 Kohler 18HP Gas
1989 1872 Kohler 18HP Gas

1990 1882 Kohler 18HP Gas
1991 1882 Kohler 18HP Gas

1980 682 Kohler 17HP Gas
1981 682 Kohler 17HP Gas
1982 682 Kohler 17HP Gas
1983 682 Kohler 17HP Gas
1984 682 Kohler 17HP Gas

1980 782 Kohler 17HP Gas
1981 782 Kohler 17HP Gas
1982 782 Kohler 17HP Gas
1983 782 Kohler 17HP Gas
1984 782 Kohler 17HP Gas

1982 784 Kohler 17HP Gas
1983 784 Kohler 17HP Gas
1984 784 Kohler 17HP Gas

1988 1415 Kohler 14HP Gas
1989 1415 Kohler 14HP Gas

1988 1420 Kohler 14HP Gas
1989 1420 Kohler 14HP Gas
1990 1420 Kohler 14HP Gas
1991 1420 Kohler 14HP Gas

1992 1430 Kohler 14HP Gas
1993 1430 Kohler 14HP Gas

1987 1615 Kohler 16HP Gas

1987 1620 Kohler 16HP Gas

1988 1715 Kohler 17HP Gas
1989 1715 Kohler 17HP Gas

1988 1720 Kohler 17HP Gas
1989 1720 Kohler 17HP Gas
1990 1720 Kohler 17HP Gas
1991 1720 Kohler 17HP Gas

1992 1730 Kohler 17HP Gas
1993 1730 Kohler 17HP Gas

KOHLER Outdoor Power Equip.

Air Cooled KT-17

Air Cooled KT-19

Air Cooled M-18

Air Cooled MV-16S

Air Cooled MV-17

Air Cooled MV-18

Replaces:

GRAVELY
032546

KOHLER
52-098-03, 52-098-09, 52-098-12

UNITED TECHNOLOGIES
1770540, 1819040, 1819040-M030SM,
5213140-M030SM, 5666240-M030SM, SM17705,
SM18190, SM56662

OEM(s): Kohler, Johnson Electric
Type: PMDD
Voltage: 12 Volts
Rotation: CCW
Teeth/Splines: 9 Teeth/Splines
Pinion/Splines OD: 29.2mm / 1.150in
Approximate Weight: 5.74 lbs / 2.61 kg

Notes:
102.4mm Long Field Case,
(2) 1/4-28 x 27.9mm Long Bolts for Mounting
