Alternator Chevrolet / GMC HD Trucks 6.6L Diesel 2003 2004 2005

Description

Applications:

CHEVROLET / GMC Medium & Heavy-Duty Trucks All Models (By Engine) - Diesel 2003 GM 6.6L(400) V8 Dsl
CHEVROLET / GMC Medium & Heavy-Duty Trucks All Models (By Engine) - Diesel 2004 GM 6.6L(400) V8 Dsl
CHEVROLET / GMC Medium & Heavy-Duty Trucks All Models (By Engine) - Diesel 2005 GM 6.6L(400) V8 Dsl

Specifications:

8292N

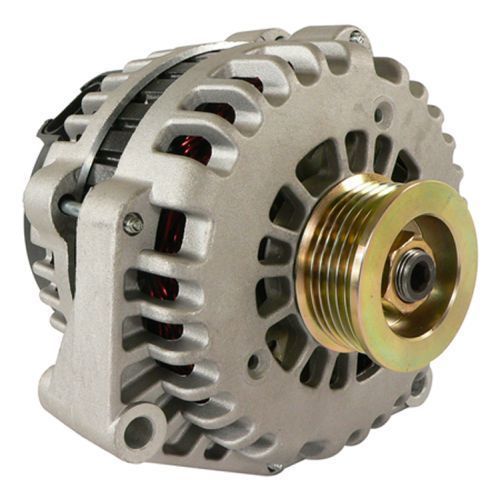

Alternator
Specs
� 145 Amp/12 Volt, CW, 6-Groove Pulley
� Delco AD244 Series IR/IF
� MFR:DELCO
� MFR SERIES:AD244 Series
� DESIGN:IR/IF
� VOLTAGE:12
� AMPERAGE:145
� ROTATION:CW
� PLUG CLOCK:12:00 Plug Clock
� PLUG CODE:314
� PULLEY CLASS:S6

Replaces these part numbers:

Features:
� 100% New
� WAI-Transpo premium rectifier & regulator
� Premium, hi-temperature WBD bearings
� Hi-temperature class-H windings
� Precision CNC machined castings
� OE performance output curve
Also See:
8292N-253A;8292N-DR;8292N-DR220A;908292
Used On:
Buick (2004-2006) , Cadillac (2002-2005) , Chevrolet (1999-2016) , GMC (1999-2016) , Hummer (2003-2007) , Isuzu (2003-2006) , Saab (2005-2006)
Replaces:
AM General 6019239, Delco 10464405, 10464443, 10464453, 10464456, 10464476, 10480234, 10480390, 15200109, 15226003, 15750871, 15754097, 15754097A, 15754097M, 15754097W, 15768830, 18000002, 19244745, 19244746, 22781130, GM 10464476, 15200109, 15226003, 15263859, 19151921, 19244751, 22781130, 22781131, Isuzu 8104644760, 8152260030, Original Reference Number 10480234W, 15750871A, Saab 15-22-6003
