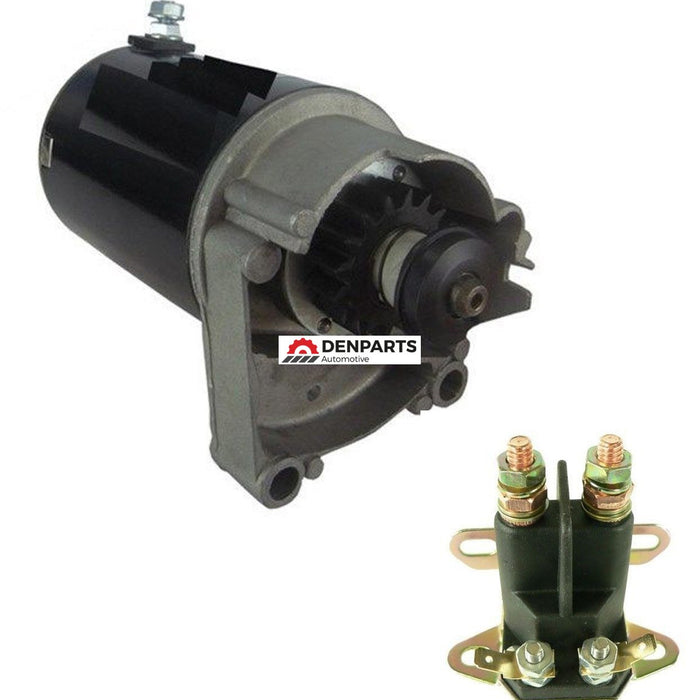

STARTER SOLENOID KIT JOHN DEERE LAWN TRACTOR BRIGGS STRATTON 16HP 116 116H

Description

Applications:

BRIGGS & STRATTON Outdoor Power Equip.
ENGINES Air Cooled 14HP Horizontal
ENGINES Air Cooled 14HP Vertical
ENGINES Air Cooled 16HP Horizontal
ENGINES Air Cooled 18HP Horizontal

CUB CADET Outdoor Power Equip.
TRACTORS - GARDEN 1604 Briggs & Stratton 16HP Gas 1985-1986
TRACTORS - GARDEN 1606 Briggs & Stratton 16HP Gas 1985-1986
TRACTORS - GARDEN 580 Briggs & Stratton 16HP 1982-1984
TRACTORS - GARDEN 582 Briggs & Stratton 16HP 1979-1984
TRACTORS - LAWN 1605 Briggs & Stratton 16HP Gas 1985-1986
TRACTORS - LAWN 1610 Briggs & Stratton 16HP Gas 1985-1986

JOHN DEERE Outdoor Power Equip.
MISC. LAWN EQUIPMENT (BY ENGINES) Various Models Briggs & Stratton 16HP
MOWERS - WALK BEHIND Commercial Models Briggs & Stratton 16HP
MOWERS - WALK BEHIND Various Models Briggs & Stratton 16HP
TRACTORS - LAWN 116 Briggs & Stratton 1982-1985
TRACTORS - LAWN 116H Briggs & Stratton 1983-1985

Specifications:

STARTER
Type: PMDD
Voltage: 12 Volts
Rotation: CCW
Teeth/Splines: 16 Teeth/Splines
Pinion/Splines OD: 40.6mm / 1.598in
Mounting Hole 1: 9.5mm ID Unthreaded
Mounting Hole 2: 8.5mm ID Unthreaded
Mounting Hole 3: 8.5mm ID Unthreaded
New or Remanufactured: New
Approximate Weight: 5.18 lbs / 2.35 kg

SOLENOID
Part Type: SOLENOID / RELAY
Voltage: 12
Universal Style Double Pole
Dimension: Universal Mount; Main Studs 1/4-20 or 5/16-24 (Adaptable); Ignition is 12-24 Stud w/Spade Terminal; Ground is 12-24 Stud w/Spade Terminal; Isolated Ground

Replaces these part numbers:

STARTER
Briggs & Stratton 393017, 394674, 394808, 435307, 497596, 497956
John Deere AM38984, AM39287, LG497596

SOLENOID
BRIGGS & STRATTON: 5410H, 5410D, BS-5410K, 5410K, 745001MA
Ariens: 03551000
AYP: 109946,
Case: C-266525, C-33025
Castelgarden: 118399062/0, 18736100/0, 1873611
Cub Cadet: 725-04439A
Exmark: 1-513075, 117-1197, 513075
Gilson: 212655
Grasshopper: 184251
Gravely: 044766, 045071
Husqvarna: 532109081, 532109946, 532146154
John Deere: AM130365, AM132990, AM133094, AM138497, GY00185
Lawn-Boy: 740207
MTD: 725-04439A
Sca 483278
Simplicity: 1685290, 1685290SM, 1686981, 1686981SM, 1686982, 1686982SM, 170051, 170051SM, 1700751, 1700751SM
Snapper: 1-8604, 1755382YP, 7018604, 7075622, 7075622SM, 75622
Stiga: 1134-2946-02, 1134-2962-01, 9400-0070-00
Toro: 1-513075, 110116, 1101162, 110167, 117-1197, 47-1910, 740207
Troy-Bilt: 1752137, 1752137P, 1753539
