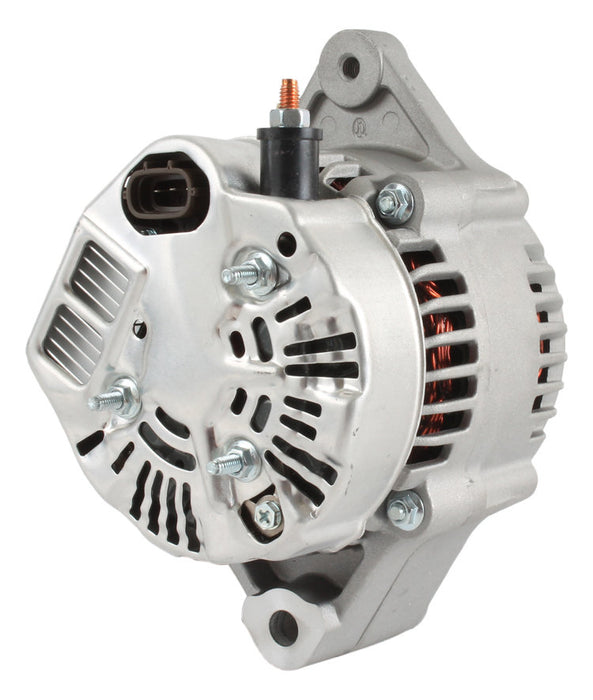

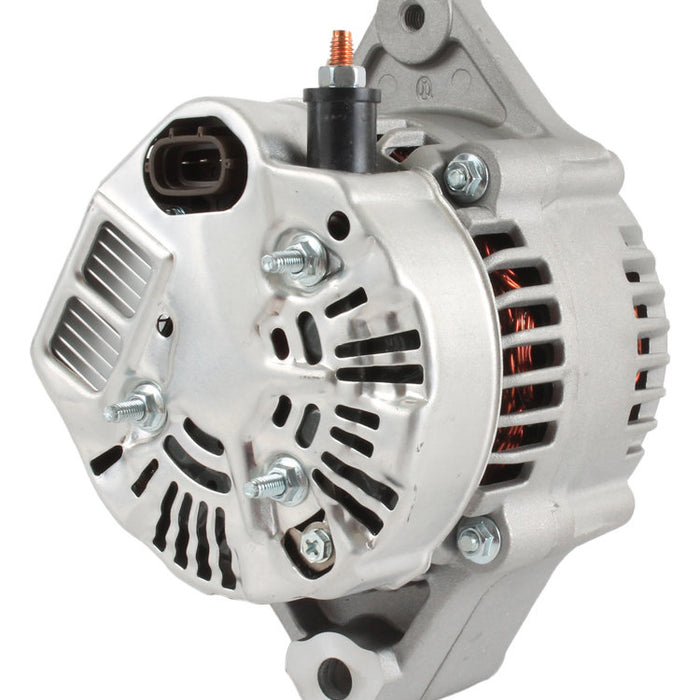

Alternator For Toyota Lift Truck 7FD10 7FD14 2Z ENGINE 1998-On

Description

Applications:

TOYOTA LIFT TRUCKS
7FD10 1998-ON 1DZ ENGINE
7FD10 1998-ON 2Z ENGINE
7FD14 1998-ON 2Z ENGINE
7FD14 1998-ON 1DZ ENGINE
7FD15 1998-ON 2Z ENGINE
7FD15 1998-ON 1DZ ENGINE
7FD18 1998-ON 2Z ENGINE
7FD18 1998-ON 1DZ ENGINE
7FD20 1998-ON 2Z ENGINE
7FD20 1998-ON 1DZ ENGINE
7FD23 1998-ON 2Z ENGINE

Specifications:

Description: Alternator
Voltage: 12
Amps: 60
Rotation: CW
Shaft OD (Pulley): 0.591in / 15mm
Mount Type: Spool
Mtg Ear 1 Hole: M8-1.25 Threaded
Mtg Ear 2 Hole: 10.2mm Unthreaded
Mtg Ear 1 Thickness: 0.63in / 16mm
Mtg Ear 2 Thickness: 2.283in / 58mm
Regulator Clock: 12:00
Fan Location: Internal
Regulator Location: Internal
B+ Terminal: M6-1.0
S Terminal: 2.1mm Blade
IG Terminal: 2.1mm Blade
L Terminal: 2.1mm Blade
Polarity: Negative
Pulley Grooves: 1
Pulley Type: Solid
Pulley OD: 3.232in / 82.1mm
Shaft Threads: M14-1.5

Replaces these part numbers:

Toyota: 27060-78700-71, 27060-78701-71, 27060-74221, 27060-78700
Denso: 102211-5190, 102211-5850
Pic: 290-5284
