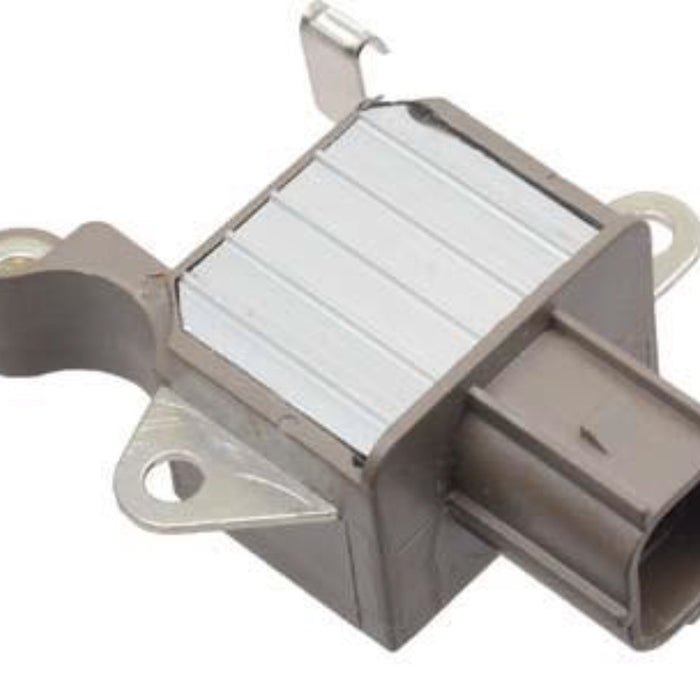

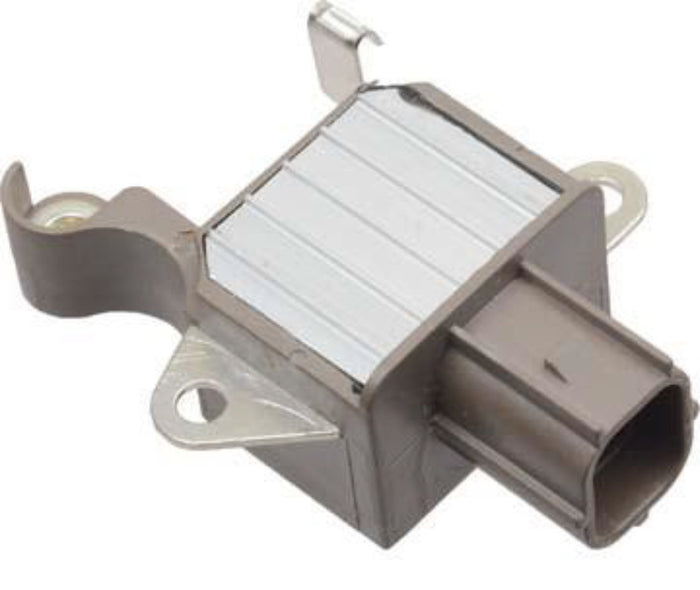

Alternator Regulator Honda Accord 2.4L 2008 2009 2010 2011 2012

Description

Applications:

Honda Car Accord L4 2.4L 2354cc 2008
Honda Car Accord L4 2.4L 2354cc 2009
Honda Car Accord L4 2.4L 2354cc 2010
Honda Car Accord L4 2.4L 2354cc 2011
Honda Car Accord L4 2.4L 2354cc 2012

Honda Car Accord L4 2.4L 2354cc 144cid 2008
Honda Car Accord L4 2.4L 2354cc 144cid 2009
Honda Car Accord L4 2.4L 2354cc 144cid 2010
Honda Car Accord L4 2.4L 2354cc 144cid 2011
Honda Car Accord L4 2.4L 2354cc 144cid 2012

Specifications:

Description: Regulator, Electronic
OEM(s): Denso, Honda
Voltage: 12
Set Point: 14.5
Terminal ID: IG, C, L, FR
Polarity: Negative
Includes Brush Holder?: No
Activation: Ignition
Adjustable?: No
Circuit Type: B-Circuit
Includes Rectifier?: No
Includes Tolerance Ring?: No
Weight: 0.3 lbs / 0.14 kg

NOTE:
-Ignition Activated
-LRC Function
-OE Compliant C-Function
-Standard Lamp Function - Without Output
-Field, Lamp short circuit protected

Replaces these part numbers:

Denso: 126600-3660

OEM UNIT NUMBERS

Acura: 06311-R50-505RM, 31100-R40-A01, 31100-R40-A01RM, CSF89

Denso: 104210-5890

Honda: 06311-R50-505RM, 31100-R40-A01, 31100-R40-A01RM, CSF89
