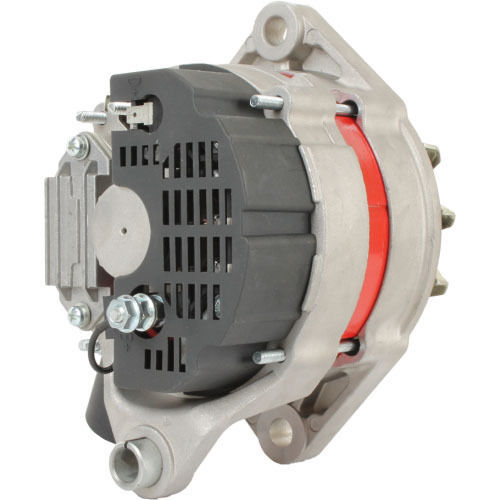

Alternator For Same Argon Aster Dorado Krypton Tractors 294393200, 294393700

Description

Applications:

Same Agricultural Tractor

Argon 3 SDF1000.4, 55kW, Tier 3, 4.0 2013
Aster 1997

Dorado 3 SDF1000.4, 63kW, Tier 3, 4.0 2013
Dorado 3 SDF1000.4, 70kW, Tier 3, 4.0 2013

Krypton 3 SDF1000.4, 63kW, Tier 3, 4.0 2013
Krypton 3 SDF1000.4, 70kW, Tier 3, 4.0 2013
Krypton 3 SDF1000.4, 75kW, Tier 3, 4.0 2013

Specifications:

Description: Alternator
OEM(s): Deutz, Lamborghini, Letrika/MAHLE
Family: Letrika/MAHLE AAK
Voltage: 12
Amps: 65
Mtg Ear 1 Hole: 10.6mm Unthreaded
Mtg Ear 2 Hole: 12.2mm Unthreaded
Mtg Ear 3 Hole: 12.2mm Unthreaded
Fan Location: External
Regulator Location: Internal
B+ Terminal: M6-1.0
Notes: Includes Fan
Weight: 10.27 lbs / 4.67 kg

Replaces these part numbers:

Fiat: 4808504, 4841776
Iveco: 99457074
Letrika (Iskra): 11.201.463
Letrika (Iskra) Sales: IA 0463
Letrika (Iskra) Tech.: AAK3562, AAK3563, AAK4102
Marelli: 063320037010, 063321040010, 063321079010, 063321428010, 63321040, 63321079, 63321428, MAN283, MAN770, MAN795
Prestolite: 20130207
Same: 294393200, 294393700, 294394000, 294394200, 294395500, 294395700, 46384533
