Yamaha ATV UTV Starter Kodiak Grizzly Rhino 350-660

Description

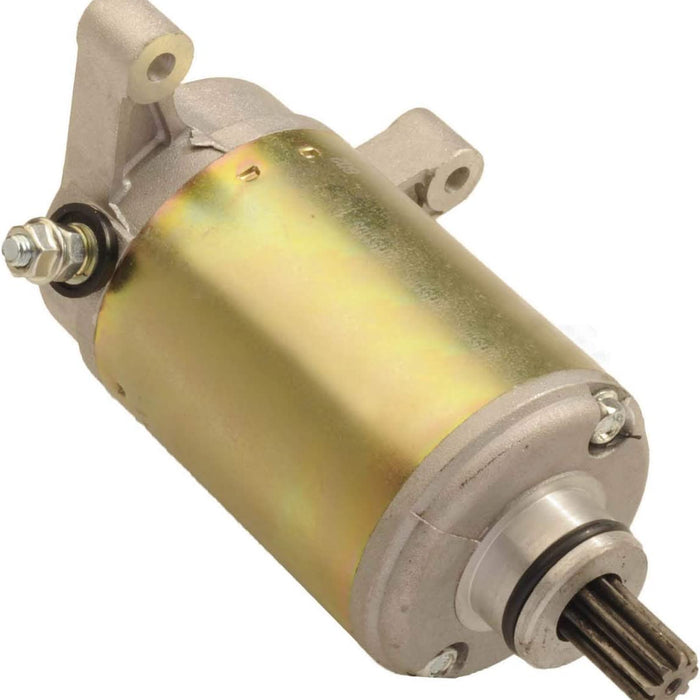

This is a Brand New Aftermarket Starter Fits Yamaha

Models:

Yamaha Outdoor Power Equip.

Utility Vehicle (UTV)

2006 YXR45F Rhino 450 421cc
2007 YXR45F Rhino 450 421cc

2004 YXR66F Rhino 660 660cc
2005 YXR66F Rhino 660 660cc
2006 YXR66F Rhino 660 660cc
2007 YXR66F Rhino 660 660cc

Yamaha Powersport

All-Terrain Vehicle (ATV)

2000 YFM400 Kodiak 401cc
2001 YFM400 Kodiak 401cc
2002 YFM400 Kodiak 401cc
2003 YFM400 Kodiak 401cc

2003 YFM450 Kodiak 421cc
2004 YFM450 Kodiak 421cc

2004 YFM45FA Kodiak 450 4X4 421cc
2005 YFM45FA Kodiak 450 4X4 421cc
2006 YFM45FA Kodiak 450 4X4 421cc

2004 YFM45FAH Kodiak 450 4X4 421cc
2005 YFM45FAH Kodiak 450 4X4 421cc
2006 YFM45FAH Kodiak 450 4X4 421cc

2007 YFM45FG Grizzly 421cc
2008 YFM45FG Grizzly 421cc

2007 YFM45FX Wolverine 421cc
2008 YFM45FX Wolverine 421cc

2004 YFM4A Kodiak 400 2WD 401cc
2005 YFM4A Kodiak 400 2WD 401cc
2006 YFM4A Kodiak 400 2WD 401cc

2004 YFM4FA Kodiak 400 4X4 401cc
2005 YFM4FA Kodiak 400 4X4 401cc
2006 YFM4FA Kodiak 400 4X4 401cc

2007 YFM4FG Grizzly 401cc
2008 YFM4FG Grizzly 401cc

2005 YFM66 Grizzly 660 660cc
2006 YFM66 Grizzly 660 660cc
2007 YFM66 Grizzly 660 660cc
2008 YFM66 Grizzly 660 660cc

1998 YFM600 Grizzly 595cc
1999 YFM600 Grizzly 595cc
2000 YFM600 Grizzly 595cc
2001 YFM600 Grizzly 595cc

2001 YFM660 Grizzly 660cc
2002 YFM660 Grizzly 660cc
2003 YFM660 Grizzly 660cc
2004 YFM660 Grizzly 660cc

Replaces:

Remy Small Motor
RS41234

Yamaha
5KM-81890-00-00,
4WV-81800-00-00, 4WV-81890-00-00

OEM(s):Mitsuba
Family:Mitsuba SM13
Type:PMDD
Voltage:12 Volts
Rotation:CCW
Teeth/Splines:9 Teeth/Splines
Pinion/Splines OD:14mm / 0.551in
Mounting Hole 1:6.0mm ID:Unthreaded
Mounting Hole 2:6.0mm ID:Unthreaded
Approximate Weight:4.03lbs / 1.83kg
