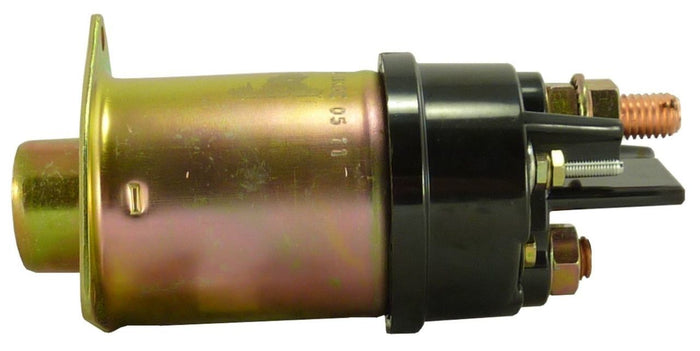

olt Solenoid For Caterpillar Excavator 320B LN, 320B N, 320B N 1996-2005

Description

Applications:

Notes:
� With Jump-Start Protection cap.
� *Dummy terminal is used to secure cover used w/ Jump-Start Protection cap.

Caterpillar Excavators 320B LB 1996-2005 Cat 3116

Caterpillar Excavators 320B N 1996-2005 Cat 3116

Caterpillar Excavators 320B S 1996-2005 Cat.3116

Caterpillar Excavators 322L 1994-1996 Cat. 3116

Caterpillar Excavators 322N 1994-1996 Cat. 3116

Caterpillar Excavators 322B 1996-On Cat. 3116

Caterpillar Excavators 322B L 1996-On Cat. 3116

Caterpillar Excavators 322B LN 1996-On Cat. 3116

Caterpillar Excavators 322C 2001-On Cat. 3126B

Caterpillar Excavators 322C FM LGP 2001-On Cat. 3126B

Caterpillar Excavators 322C Forest Swing 2001-On Cat. 3126B

Caterpillar Excavators 322C L 2001-On Cat. 3126B

Caterpillar Excavators 322C LN 2001-On Cat. 3126B

Specifications:

TYPE: Switch, Solenoid
CAP DESIGN: BOLT-ON CAP
MOUNT TYPE: 3 HOLE MOUNT FLANGE
MOUNTING HOLE LOCATIONS: 04:00, 08:00, 12:00
OD BODY: 69
PLUNGER TYPE: REMOVABLE
TERMINAL BATTERY: 1/2-13
TERMINAL COUNT: 4 TERM
TERMINAL DUMMY: 10-32 POST (LH)
TERMINAL MOTOR: 1/2-13; 1/4-20 INT THD
TERMINAL SWITCH: 10-32 POST (RH)
TERMINAL SWITCH: POSITION RIGHT
THREADS MOUNTING: 7MM UNTHD
TYPE: GRD BASE
VOLT: 24

Replaces these part numbers:

Caterpillar: 0R2735, 0R4263, 106-8559, 1438434, 207-1517, 3E2298, 8C4773, 9X9995, 9Y1945
Delco :10461085, 10461153, 10461395, 10461417, 10478815, 10478961, 10479013, 10479172, 1993995
