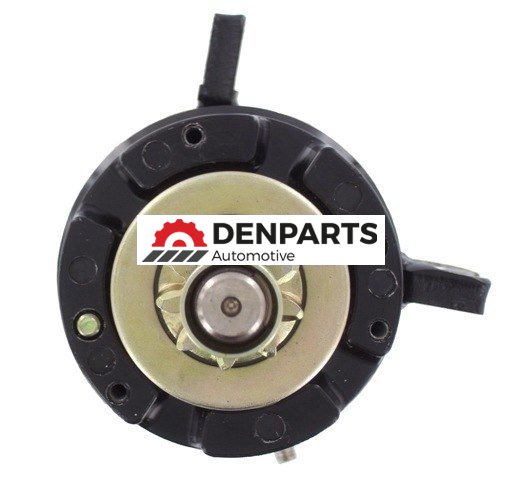

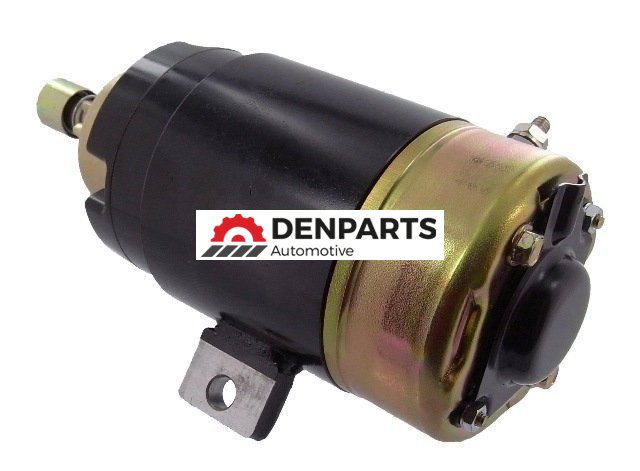

Starter Yamaha Marine Outboard Motors 688-81800-10

Description

This is a Brand New Starter for Yamaha

Models:

YAMAHA Marine

OUTBOARD MOTORS

1984 90ETL
1985 90ETL
1986 90ETL
1987 90ETL
1988 90ETL
1989 90ETL
1990 90ETL

1987 90ETLJD
1988 90ETLJD
1989 90ETLJD
1990 90ETLJD

1984 90ETX

1991 90TJR
1992 90TJR
1993 90TJR
1994 90TJR
1995 90TJR
1996 90TJR
1997 90TJR
1998 90TJR
1999 90TJR
2000 90TJR
2001 90TJR

1991 90TJR
1992 90TJR
1993 90TJR
1994 90TJR
1995 90TJR
1996 90TJR
1997 90TJR
1998 90TJR
1999 90TJR
2000 90TJR
2001 90TJR
2002 90TJR
2003 90TJR
2004 90TJR
2005 90TJR
2006 90TJR
2007 90TJR
2008 90TJR

1998 B90TLR
1999 B90TLR

1994 C75TLR
1995 C75TLR
1996 C75TLR
1997 C75TLR
1998 C75TLR
1999 C75TLR

1997 C80TLR

1991 C85TLR
1992 C85TLR
1993 C85TLR
1994 C85TLR
1995 C85TLR
1996 C85TLR

1997 C90TLR
1998 C90TLR
1999 C90TLR
2000 C90TLR
2001 C90TLR

1990 CV85EL

1990 CV85ETL

1996 P75TLH
1997 P75TLH
1998 P75TLH
1999 P75TLH

Replaces:

API MARINE
MOT5015

ARCO MARINE
3427

HITACHI
S114-263B

SIERRA MARINE
18-6423

YAMAHA
688-81800-10, 688-81800-11, 688-81800-12

OEM(s):Hitachi, Yamaha
Type:DD
Voltage:12 Volts
Rotation:CCW
Teeth/Splines:9 Teeth/Splines
Pinion/Splines OD:28.3mm / 1.114in
Mounting Hole 1:9.0mm IDUnthreaded
Mounting Hole 2:9.0mm IDUnthreaded
Mounting Hole 3:9.0mm IDUnthreaded
Approximate Weight:7.9 lbs / 3.59 kg
