Description
\n
Applications:
\n
\nMariner Engine - Marine
\n
\nMagnum III 1994-2000
\nXR6 2001-2004
\n
\nMariner Outboard Motor
\n
\n135 H.P. 1995-2004
\n150 H.P. 1995-2004
\n175 H.P. 1995-2004
\n200 H.P. 1995-2004
\n225 H.P. 1995-2004
\n
\nMercury Engine - Marine
\n
\nMagnum III 1994-2000
\nXR6 2001-2004
\n
\nMercury Outboard Motor
\n
\n135 H.P. 1995-2004
\n150 H.P. 1995-2004
\n175 H.P. 1995-2004
\n200 H.P. 1995-2004
\n225 H.P. 1995-2004
\n
\n
Specifications:
\n

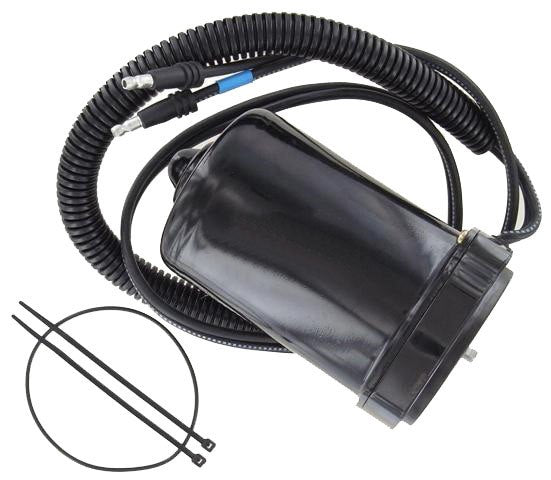

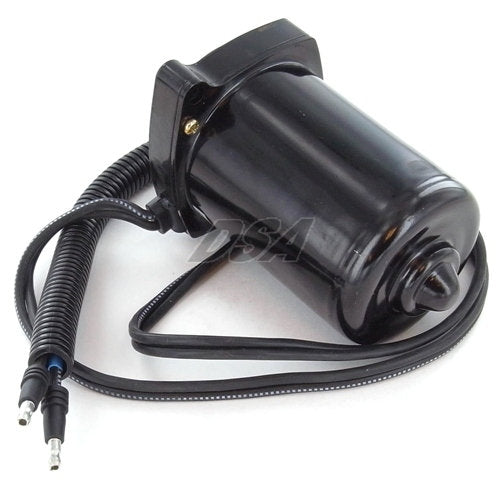

\nDescription: Tilt Motor
\nOEM(s): Mercury Marine
\nVoltage: 12
\nRotation: Reversible
\nOD: 2.953in / 75mm
\nShaft OD: 0.315in / 8mm
\nLength: 4.909in / 124.7mm
\nShaft: Tanged Shaft
\nCurrent Type: DC
\n
\nNotes:
\n(2) 6.5mmID Mounting Holes
\n(2) 3-1/2 Foot Long Wire Harness With Bullet Connectors
\n1/4" Mounting Holes
\n
\n
Replaces these part numbers:
\n
\nAPI Marine
\nPT486NM
\n
\nArco Marine
\n6250
\n
\nMercury Marine
\n828708, 828708T, 878265A1, 878265A4
\n
\nRemy Small Motor
\nRT05005
\n
\nSierra Marine
\n18-6773
\n
\n
\n
\nTilt/Trim Motor Mercury Mariner 135 150 175 200 225HP 1995-2004
\n
\n
Tilt/Trim Motor Mercury Mariner 135 150 175 200 225HP 1995-2004
