Description

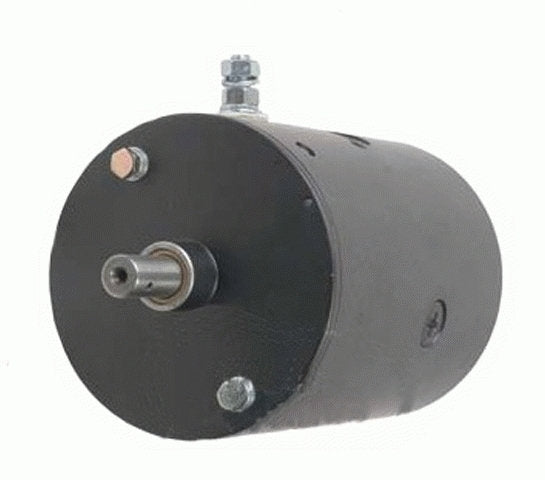

This is a Brand New Aftermarket Winch Motor Fits Bellview and Warn Winch
Models:
Bellview, Warn Winch (Early)
OE Came as 2-Coil Field Unit
Replacement is Heavy Duty 4-Coil Field Motor
1 Post
CCW
14-Tooth Gear On Shaft
Thru Bolts at 5:00 & 11:00
Motor has Steel C.E. Plate w/Center Hole for the Shaft.
Must be Used w/Original C.E. Brake Assembly if Needed.
Replaces:
Prestolite
46-3650, MHT6101,
MHT7001, MHT7101, MHT7101S
Western Motor
W-8703
Also Replaces:
160-801, MHT-6101, MHT-7001, MHT-7101, MHT-7101S
OEM(s):Prestolite
Voltage:12
Rotation:CCW
Field Hsg OD:114.3mm / 4.500in
Overall Length:243mm / 9.567in
Shaft OD:14.4mm / 0.567in
Terminal 1 Size:5/16-24
Approximate Weight:17.2 lbs / 7.82 kg
Notes:
Thru Bolts at 5:00 & 11:00,
14-Tooth Gear,
Roll Pin Hole in CE Shaft
