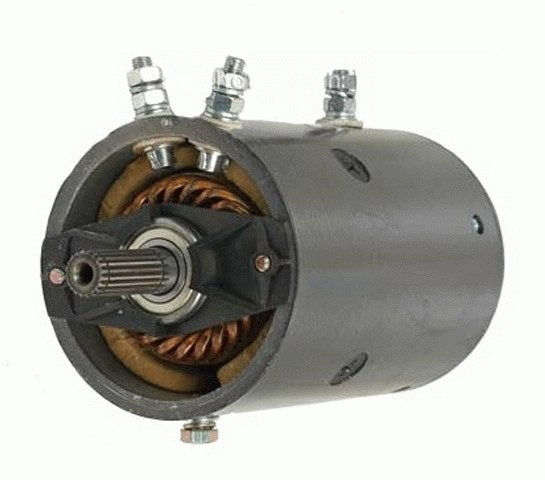

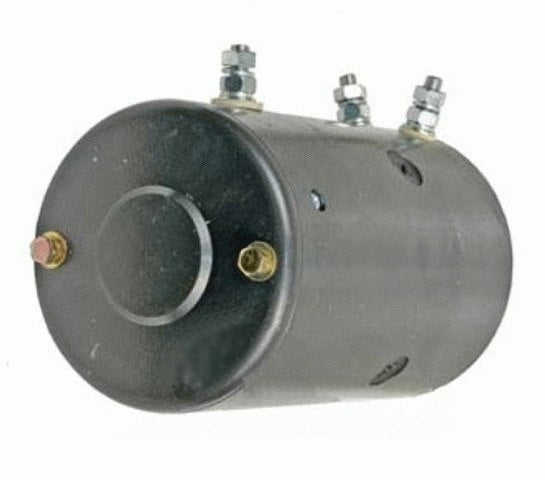

Winch Motor Warn Wapsa Superwinch "X", XD9000, XD 90001, MX8000, M8000

Description

This is a Brand New Aftermarket Winch Motor fits Warn and Wapsa

Models:

Superwinch "X" Series

XD9000, XD90001, MX8000, M8000, MX6085

Two Way Rotation
3 Post
20 Spline Shaft
4 Field Coils
One Ball Bearing
Heavy Duty Motor

Replaces:

Prestolite
MRVB7

Reference Number
25314,
25981, 25982, M1901,
16548, 160799, 25314,
25981, 25982, MRV-B7

Western Motor
W-7923

OEM(s):Ametek, Prestolite
Voltage:12
Rotation:Reversible
Field Hsg OD:114.3mm / 4.500in
Overall Length:232.5mm / 9.154in
Shaft OD:16.6mm / 0.654in
Shaft Notes:20 Straight Splines
Terminal 1 Size:M8-1.25
Terminal 2 Size:M8-1.25
Terminal 3 Size:M8-1.25
Approximate Weight:20.375 lbs / 9.26 kg

Notes:
165.1mm (6.5") Long Field Case,
114.29mm (4.5") Dia. Field Case
