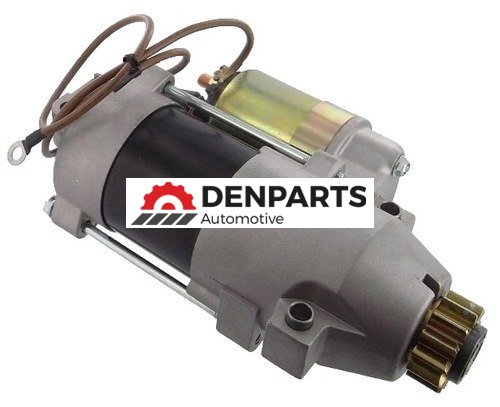

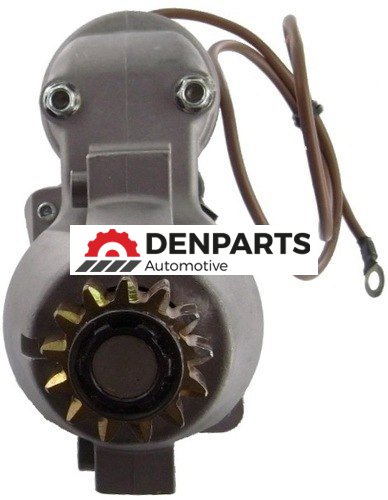

Yamaha Marine Starter LZ VZ 150-175HP 68F-81800-00

Description

This is a Brand New Starter for Yamaha

Models:

YAMAHA Marine

Outboard Motors

2000 LZ150TR

2001 LZ150TXR
2002 LZ150TXR
2003 LZ150TXR
2004 LZ150TXR
2005 LZ150TXR
2006 LZ150TXR

2000 LZ200TR

2001 LZ200TXR
2002 LZ200TXR
2003 LZ200TXR
2004 LZ200TXR
2005 LZ200TXR
2006 LZ200TXR
2007 LZ200TXR
2008 LZ200TXR

2000 VZ150TLR
2001 VZ150TLR
2002 VZ150TLR
2003 VZ150TLR
2004 VZ150TLR
2005 VZ150TLR
2006 VZ150TLR
2007 VZ150TLR
2008 VZ150TLR

2001 VZ175TLR
2002 VZ175TLR
2003 VZ175TLR
2004 VZ175TLR
2005 VZ175TLR
2006 VZ175TLR
2007 VZ175TLR
2008 VZ175TLR

2001 VZ200TLR
2002 VZ200TLR
2003 VZ200TLR
2004 VZ200TLR

2001 Z150TLR
2002 Z150TLR
2003 Z150TLR
2004 Z150TLR

2000 Z150TR

2001 Z150TXR
2002 Z150TXR
2003 Z150TXR
2004 Z150TXR
2005 Z150TXR
2006 Z150TXR

2001 Z175TXR
2002 Z175TXR
2003 Z175TXR
2004 Z175TXR
2005 Z175TXR
2006 Z175TXR

2001 Z200TLR
2002 Z200TLR
2003 Z200TLR
2004 Z200TLR
2005 Z200TLR
2006 Z200TLR

2000 Z200TR

2001 Z200TXR
2002 Z200TXR
2003 Z200TXR
2004 Z200TXR
2005 Z200TXR
2006 Z200TXR
2007 Z200TXR
2008 Z200TXR

Replaces:

API MARINE
MOT5018

ARCO MARINE
3431

HITACHI
S114-836A

SIERRA MARINE
18-6426

YAMAHA
68F-81800-00, 68F-81800-01, 68F-81800-02

OEM(s): Hitachi, Yamaha
Type: PMGR
Voltage: 12 Volts
Rotation: CCW
Teeth/Splines: 13 Teeth/Splines
Pinion/Splines OD: 39.7mm / 1.563in
Mounting Hole 1: 8.8mm ID Unthreaded
Mounting Hole 2: 8.8mm ID Unthreaded
Approximate Weight: 8.1 lbs / 3.68 kg

Notes:
63cm Switch Lead,
6.6mm ID Ring Terminal,
Battery Stud M8-1.25 Threaded
