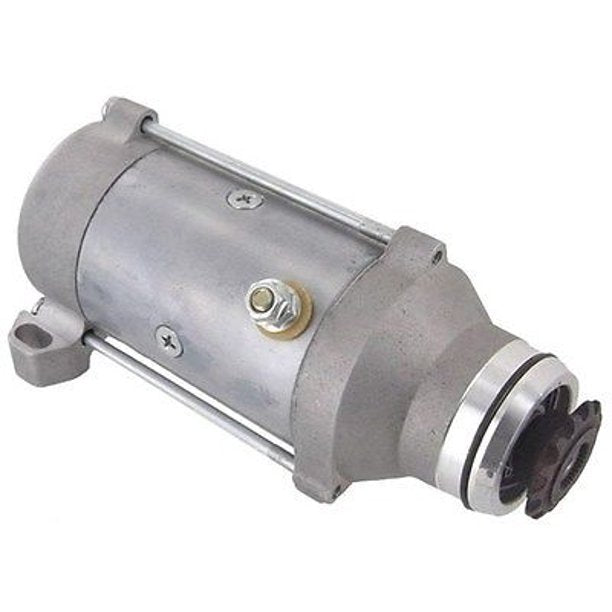

Honda Gold Wing GL1100,A,I 1980-1983 Motorcycle Starter

Description

Detailed Application Information

Honda Motorcycles

1980 GL1100 Gold Wing 1084cc
1981 GL1100 Gold Wing 1084cc
1982 GL1100 Gold Wing 1084cc

1982 GL1100A Gold Wing Aspencade 1084cc
1983 GL1100A Gold Wing Aspencade 1084cc

1980 GL1100I Gold Wing Interstate 1084cc
1981 GL1100I Gold Wing Interstate 1084cc
1982 GL1100I Gold Wing Interstate 1084cc
1983 GL1100I Gold Wing Interstate 1084cc

Part Numbers

Honda

31200-463-008, 31200-463-405

Mitsuba

SM224

Remy Small Motor

RS41203

All Part Numbers

Found Here: CM18600N SH-00141R 109-18600 HM-125 SMU0069 121-016 620-036 80-18600 3191-304 113538 90-18600 HS-36N 31200-463-008 31200-463-405 410-54023 HN2-0050N 18600N 57-2707 SM224 18600 120.018.002 RS41203 18600N HS-36 80-18600 18600N 18600N 91-26-2049 18600

Specifications

OEMs: Honda, Mitsuba
Type: PMDD
Voltage: 12 Volts
Rotation: CW
Teeth/Splines: 13 Teeth/Splines
Pinion/Splines OD: 13.6 mm / 0.535 in
Mounting Hole 1: 6.6 mm ID Unthreaded
Mounting Hole 2: 6.6 mm ID Unthreaded
Approximate Weight: 5.575 lb / 2.53 kg

Notes:
Mounting Hole #2 Is Oblong at 6.6 mm x 13.1 mm
