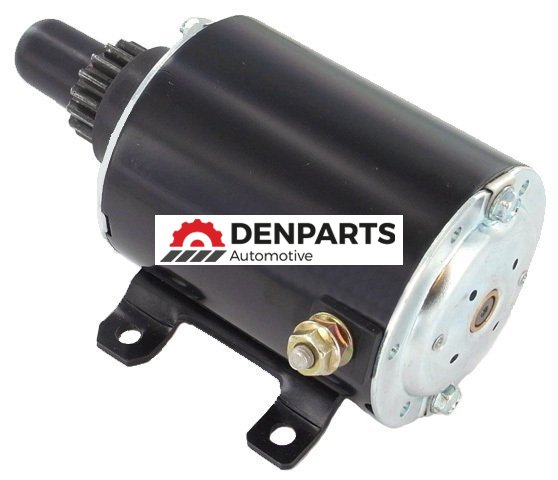

Tecumseh Starter 36680 33605 35763 106-302

Description

This is a Brand New Starter for Tecumseh

Models:

TECUMSEH Outdoor Power Equip.

HM 70-100
OHV13 Spec Numbers 203208A, 203209A OVM 120
OVXL120 Spec Numbers 202725B
OVXL125 Spec Numbers 203006C, 203032C, 203036B,
203040B, 203040C, 203042B, 203043B 203046C and 203039B
TVM 170-220
TVXL 170-220

Replaces:

JOHN DEERE
AM30931

JOHNSON ELECTRIC
5717340, SM57173

TECUMSEH
33202, 33605, 35763, 35763A,
35876, 36463, 36680, 36880

OEM(s): Tecumseh
Type: PMDD
Voltage: 12 Volts
Rotation: CCW
Teeth/Splines: 16 Teeth/Splines
Pinion/Splines OD: 32.6mm / 1.283in
Mounting Hole 1: 7.0mm ID Unthreaded
Mounting Hole 2: 7.0mm ID Unthreaded
Mounting Hole 3: 7.0mm ID Unthreaded
Approximate Weight: 5.105 lbs / 2.32 kg

Notes:
3.689"/93.7mm Long Field Case,
0.398"/10.1mm Shaft Diameter,
Includes a Fourth 7.0mm Unthreaded Mounting Hole
